ICM7556MJD - Renesas Electronics

Description: General Purpose Timers

Download ICM7556MJD Model

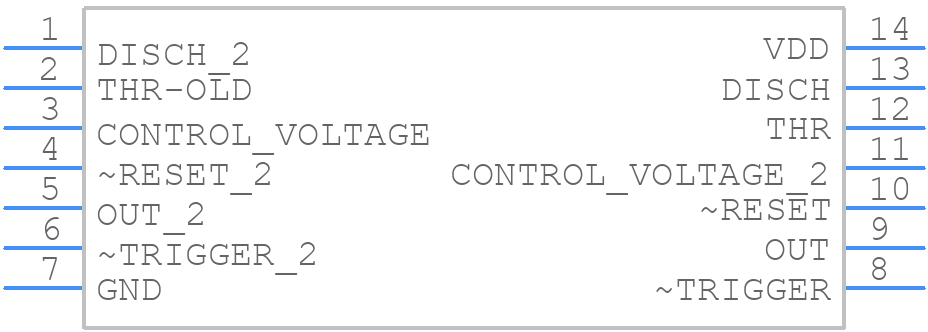

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

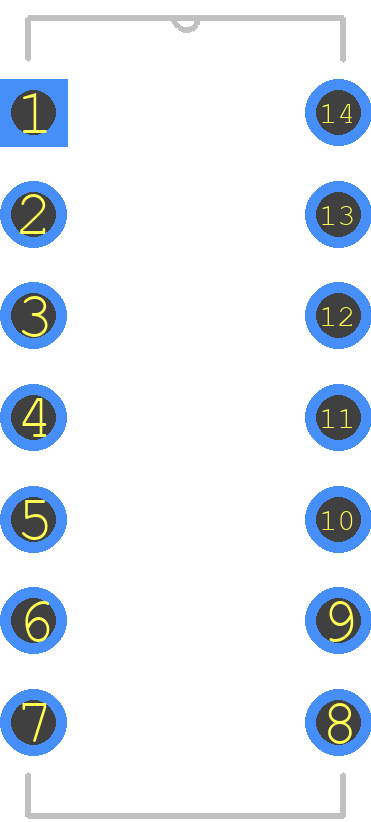

ICM7556MJD - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14 Ld PDIP
click to zoom
3D Models
ICM7556MJD - Renesas Electronics  - 3D model - Dual-In-Line Packages - 14 Ld PDIP
click to zoom

ICM7556MJD Details

  • Manufacturer Part Number:

    ICM7556MJD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    LG-MAX

  • Analog IC - Other Type:

    SQUARE

  • JESD-30 Code:

    R-CDIP-T14

  • Length:

    19.94 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Frequency-Max:

    1 MHz

  • Package Body Material:

    CERAMIC

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    0.6 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ICM7556MJD Frequently Asked Questions (FAQs)

  • The maximum frequency of the ICM7556MJD is typically around 1 MHz, but it can vary depending on the specific application and operating conditions.
  • Yes, the ICM7556MJD can be used as a crystal oscillator, but it requires an external crystal and capacitors to form a Pierce oscillator circuit.
  • The timing capacitor value can be calculated using the formula: Ct = (R1 * R2) / (2 * R1 * R2 * f), where R1 and R2 are the resistors connected to the capacitor, and f is the desired frequency.
  • The minimum supply voltage for the ICM7556MJD is 2V, and the maximum supply voltage is 18V.
  • The ICM7556MJD is rated for operation up to 125°C, but it's recommended to derate the operating temperature to ensure reliable operation and to prevent thermal shutdown.
