TDK recommends a 4-layer PCB with a solid ground plane and a separate power plane for the ICP-10100. The device should be placed near the center of the board, and the power and ground pins should be connected to the power and ground planes, respectively, using vias.
The ICP-10100 requires calibration after power-up. The device has an internal calibration sequence that runs automatically after power-up. The calibration sequence takes approximately 10ms to complete. During this time, the device is not ready to take measurements. After calibration, the device is ready to take accurate measurements.
TDK recommends using a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel, placed as close as possible to the power pins of the ICP-10100. This decoupling scheme helps to reduce noise and ensure stable operation.
To minimize the effects of EMI, TDK recommends using a shielded enclosure, keeping the ICP-10100 away from high-frequency sources, and using a low-pass filter on the output signals. Additionally, using a ground plane and proper PCB layout can help reduce EMI susceptibility.
The ICP-10100 is rated for operation from -40°C to 85°C. However, for optimal performance, TDK recommends operating the device within the range of 0°C to 70°C.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICP-10100 Overview

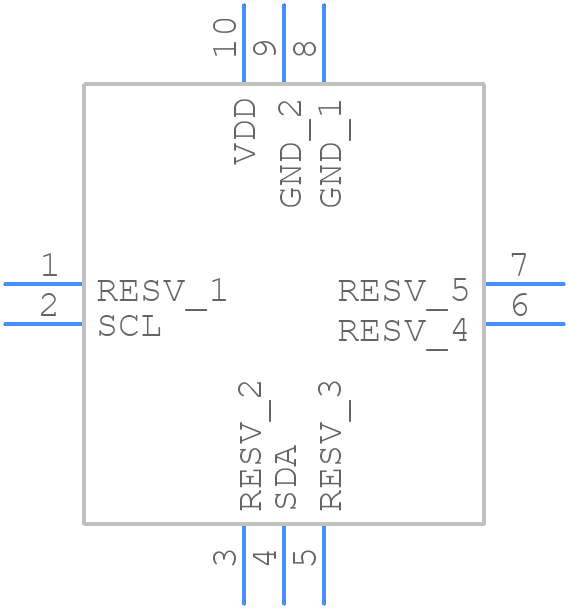

Use the download button to access the ICP-10100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICP-1,
or try a keyword search, such as Pressure Sensors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
