TDK recommends a 4-layer PCB with a solid ground plane and a separate power plane for the ICP-10111. The device should be placed near the center of the board, and the power and ground pins should be connected to the power plane and ground plane, respectively, using vias.
The ICP-10111 requires calibration after power-on. The device has an internal calibration sequence that runs automatically after power-on. The calibration sequence takes approximately 10ms to complete. During this time, the device is not ready to accept commands. After calibration, the device is ready to operate.
The ICP-10111 is rated for operation from -40°C to +85°C. However, the device's accuracy and stability may be affected at extreme temperatures. It is recommended to operate the device within the range of 0°C to +70°C for optimal performance.
The ICP-10111 is sensitive to high-frequency noise, which can affect its accuracy and stability. To minimize noise sensitivity, use a low-pass filter on the power supply lines, and ensure that the device is placed away from high-frequency sources such as antennas, motors, and switching power supplies.
TDK recommends using a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel, placed as close as possible to the power pins of the ICP-10111. This decoupling scheme helps to reduce power supply noise and ensure stable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICP-10111 Overview

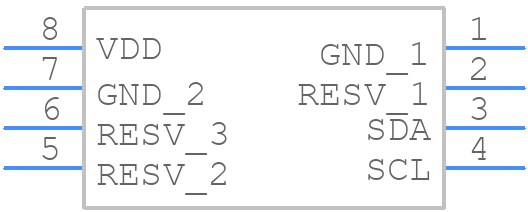

Use the download button to access the ICP-10111 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICP-1,
or try a keyword search, such as Pressure Sensors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
