ICS-328-T - Adam Tech

Description: 28 (2 x 14) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole

Download ICS-328-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ICS-328-T - Adam Tech - PCB symbol
click to zoom
PCB Footprints

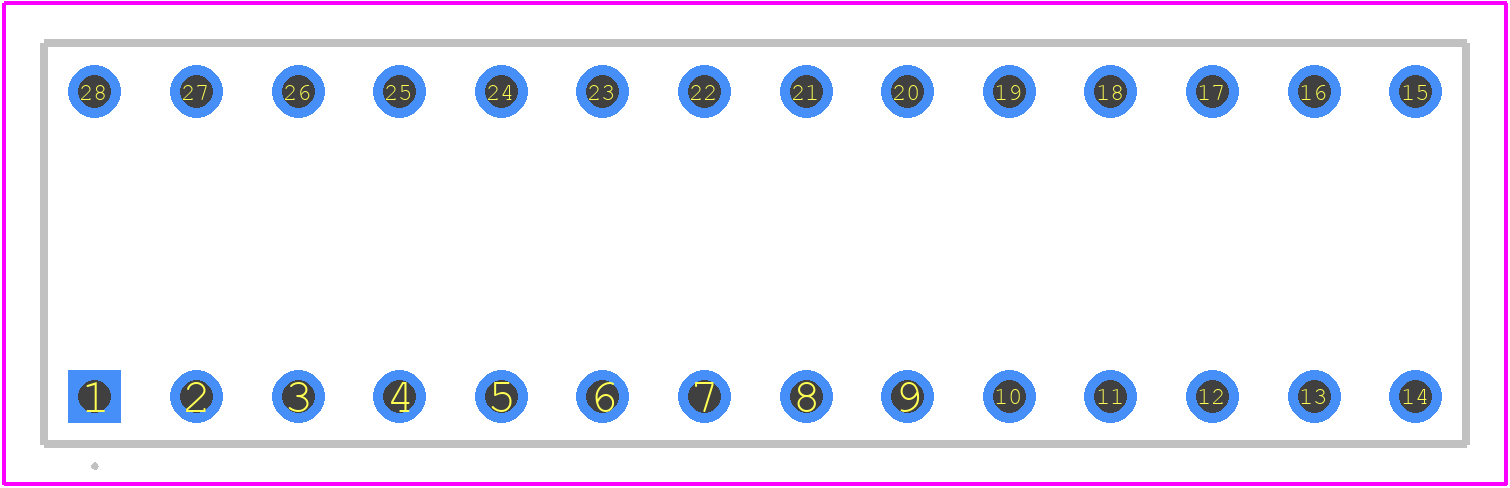

ICS-328-T - Adam Tech PCB footprint - Other - Other - ICS-328-T-4
click to zoom
3D Models
ICS-328-T - Adam Tech - 3D model - Other - ICS-328-T-4
click to zoom

ICS-328-T Details

  • Manufacturer Part Number:

    ICS-328-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Adam Technologies Inc

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL 94V-0, LOW PROFILE

  • Body Breadth:

    0.394 inch

  • Body Depth:

    0.2 inch

  • Body Length:

    1.4 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    TIN OVER COPPER

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Style:

    BELLOWED TYPE

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP28

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    POLYBUTYLENE TEREPHTHALATE

  • Insulation Resistance:

    5000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.30000000000000004 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

ICS-328-T Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ICS-328-T is -40°C to 85°C, although it can withstand storage temperatures from -55°C to 125°C.
  • To ensure reliable communication, use a stable clock source, ensure proper termination of the transmission line, and implement error-checking mechanisms such as CRC or checksums.
  • The maximum cable length for the ICS-328-T depends on the specific application and transmission speed. As a general guideline, the maximum cable length is around 100 meters at 100 Mbps, but it's recommended to consult the datasheet and perform signal integrity analysis for specific applications.
  • Yes, the ICS-328-T can be used in redundant or backup systems. Its hot-swappable design and automatic bypass feature make it suitable for high-availability applications.
  • To troubleshoot issues with the ICS-328-T, start by checking the power supply, clock signal, and transmission line integrity. Use diagnostic tools such as oscilloscopes or logic analyzers to identify signal quality issues. Consult the datasheet and application notes for specific troubleshooting guidelines.
