ICS-640-T - Adam Tech

Description: 40 (2 x 20) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Through Hole , 20mOhm , -55°C ~ 105°C

Download ICS-640-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

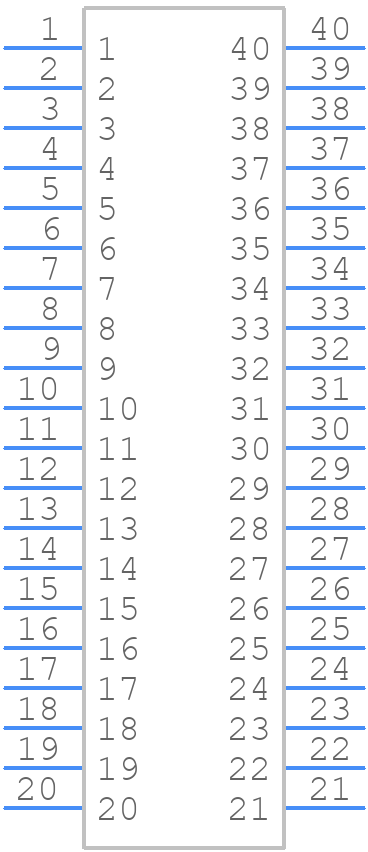

ICS-640-T - Adam Tech - PCB symbol
click to zoom
PCB Footprints

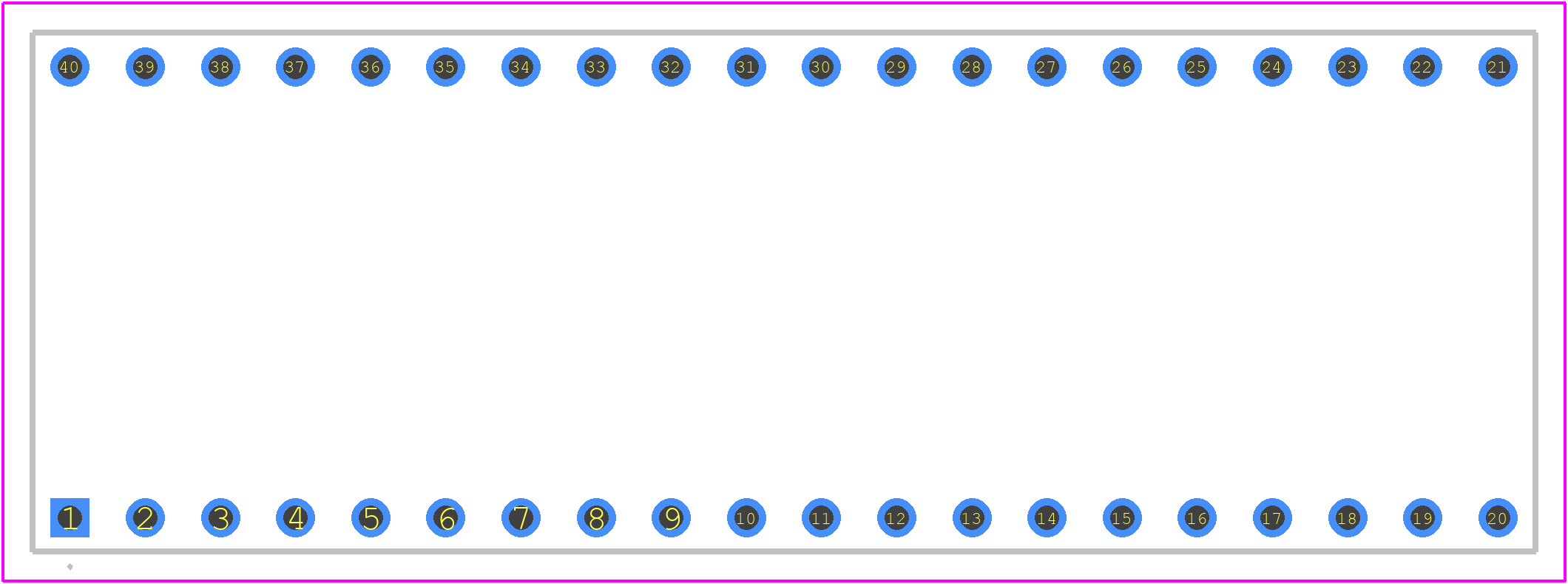

ICS-640-T - Adam Tech PCB footprint - Other - Other - ICS-640-T-1
click to zoom
3D Models
ICS-640-T - Adam Tech - 3D model - Other - ICS-640-T-1
click to zoom

ICS-640-T Details

  • Manufacturer Part Number:

    ICS-640-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Adam Technologies Inc

  • YTEOL:

    7.3

  • Additional Feature:

    STANDARD: UL 94V-0, LOW PROFILE

  • Body Breadth:

    0.689 inch

  • Body Depth:

    0.2 inch

  • Body Length:

    2 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    TIN OVER COPPER

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Style:

    BELLOWED TYPE

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP40

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    POLYBUTYLENE TEREPHTHALATE

  • Insulation Resistance:

    5000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.6000000000000001 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER
