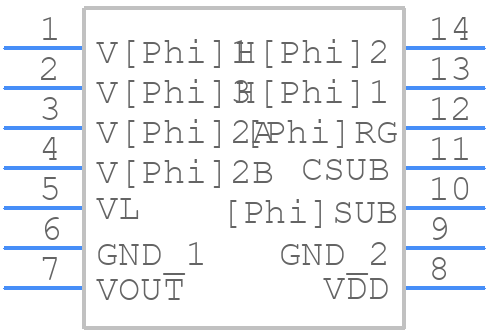

ICX098BQ footprint, schematic symbol and 3D model by Sony

Symbol

PCB Footprints

3D Models

ICX098BQ Details

The recommended operating temperature range for the ICX098BQ is -20°C to 70°C, with a storage temperature range of -30°C to 80°C.
To optimize the ICX098BQ's performance for low-light conditions, adjust the exposure time, gain, and analog-to-digital converter (ADC) settings. Additionally, consider using a lens with a high f-number and optimizing the optical system for maximum light gathering.
The maximum clock frequency for the ICX098BQ's output data is 54 MHz, with a minimum clock frequency of 1 MHz.
The ICX098BQ requires a specific power-on reset (POR) and power-down sequence to ensure proper operation. Refer to the datasheet for the recommended power-up and power-down timing diagrams.
The ICX098BQ is sensitive to electromagnetic interference (EMI), so it's essential to follow proper PCB design and layout guidelines, use EMI shielding, and ensure proper grounding to minimize EMI effects.

Expert Contribution

System Verified

Community Approved

Use the download button to access the ICX098BQ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ICX09, or try a keyword search, such as Image Sensors
