ID82C82 - Renesas Electronics

Description: Latches 20 CDIP -40+85C 5 0V 32NS OCTL BUS TRANSC

Download ID82C82 Model

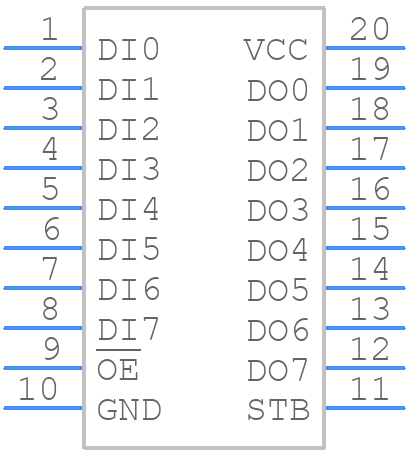

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

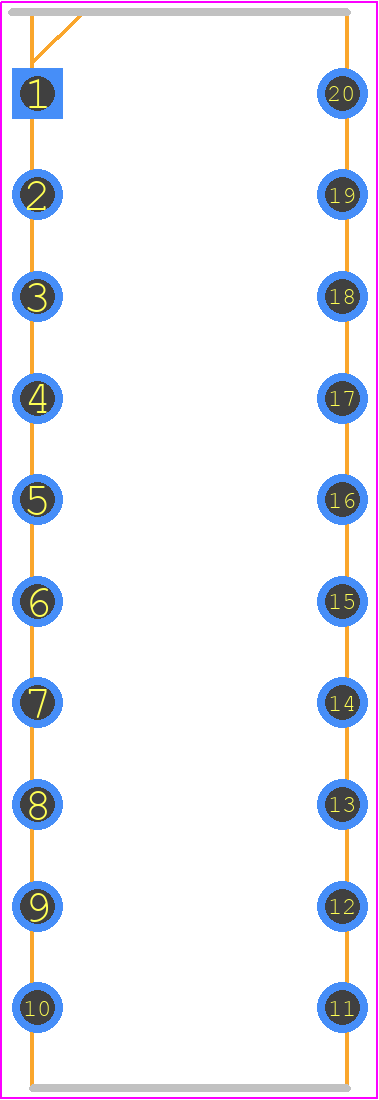

ID82C82 - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 20 LD CERDIP
click to zoom
3D Models
ID82C82 - Renesas Electronics  - 3D model - Dual-In-Line Packages - 20 LD CERDIP
click to zoom

ID82C82 Details

  • Manufacturer Part Number:

    ID82C82

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-20

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    LG-MAX

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    CMOS

  • JESD-30 Code:

    R-GDIP-T20

  • Length:

    26.92 mm

  • Load Capacitance (CL):

    300 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.008 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Prop. Delay@Nom-Sup:

    35 ns

  • Propagation Delay (tpd):

    35 ns

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ID82C82 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the ID82C82 is 4.5V to 5.5V, with a typical voltage of 5V.
  • The ID82C82 can be configured for a specific clock frequency by setting the Clock Control Register (CCR) and the Clock Prescaler Register (CPR). Refer to the datasheet for specific register settings and calculations.
  • The maximum data transfer rate of the ID82C82 is 2.5 Mbps, making it suitable for low-to-medium speed applications.
  • Yes, the ID82C82 can be used in a multi-master configuration, but it requires additional external circuitry to handle arbitration and collision detection.
  • Bus contention and arbitration can be handled using external logic, such as a bus arbiter or a priority encoder, to ensure that only one master device accesses the bus at a time.
