IDDD12G65C6XTMA1 - Infineon

Description: Diode Silicon Carbide Schottky 650 V 34A (DC) Surface Mount PG-HDSOP-10-1

Download IDDD12G65C6XTMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

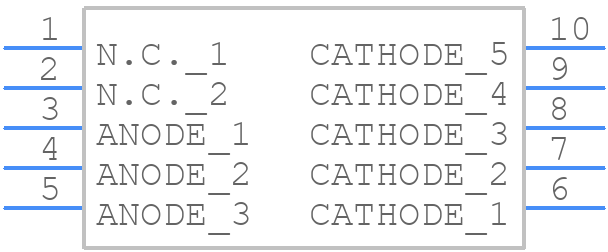

IDDD12G65C6XTMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
IDDD12G65C6XTMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-HDSOP-10-1
click to zoom
3D Models
IDDD12G65C6XTMA1 - Infineon - 3D model - Small Outline Packages - PG-HDSOP-10-1
click to zoom

IDDD12G65C6XTMA1 Details

  • Manufacturer Part Number:

    IDDD12G65C6XTMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HDSOP-10-1, 10PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    PD-CASE

  • Application:

    EFFICIENCY

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON CARBIDE

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.35 V

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    51 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    34 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power Dissipation-Max:

    120 W

  • Rep Pk Reverse Voltage-Max:

    650 V

  • Reverse Current-Max:

    40 µA

  • Reverse Test Voltage:

    420 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL
