IDDD20G65C6XTMA1 - Infineon

Description: INFINEON - IDDD20G65C6XTMA1 - SIC SCHOTTKY DIODE, SINGLE, 51A, HDSOP

Download IDDD20G65C6XTMA1 Model

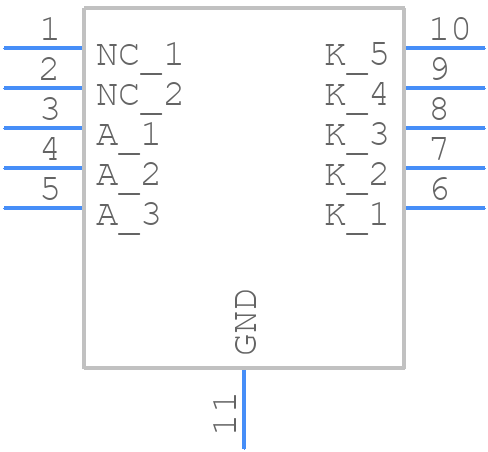

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IDDD20G65C6XTMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - IDDD20G65C6XTMA1
click to zoom
3D Models
IDDD20G65C6XTMA1 - Infineon  - 3D model - Small Outline Packages - IDDD20G65C6XTMA1
click to zoom

IDDD20G65C6XTMA1 Details

  • Manufacturer Part Number:

    IDDD20G65C6XTMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    HDSOP-10

  • Country Of Origin:

    Austria, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Additional Feature:

    PD-CASE

  • Application:

    EFFICIENCY

  • Breakdown Voltage-Min:

    650 V

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON CARBIDE

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.35 V

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    99 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    51 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power Dissipation-Max:

    169 W

  • Rep Pk Reverse Voltage-Max:

    650 V

  • Reverse Current-Max:

    67 µA

  • Reverse Test Voltage:

    420 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

IDDD20G65C6XTMA1 Frequently Asked Questions (FAQs)

  • The IDDD20G65C6XTMA1 can operate from -40°C to 150°C, with a junction temperature range of -40°C to 175°C.
  • The device has an exposed pad on the bottom for heat dissipation. Ensure good thermal contact between the pad and a heat sink or PCB thermal plane. Use thermal interface material if necessary.
  • The recommended gate resistor value is between 10 ohms and 100 ohms, depending on the specific application and switching frequency.
  • Yes, the IDDD20G65C6XTMA1 is qualified according to AEC-Q101, making it suitable for high-reliability applications such as automotive systems.
  • Use a suitable overvoltage protection circuit, such as a transient voltage suppressor (TVS) or a zener diode, and an overcurrent protection circuit, such as a fuse or a current sense resistor.
