IDL04G65C5XUMA2 - Infineon

Description: Schottky Diodes & Rectifiers SIC DIODES

Download IDL04G65C5XUMA2 Model

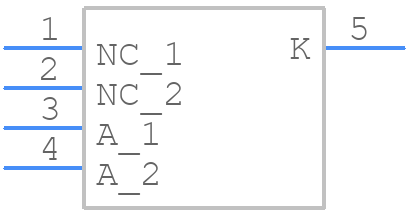

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

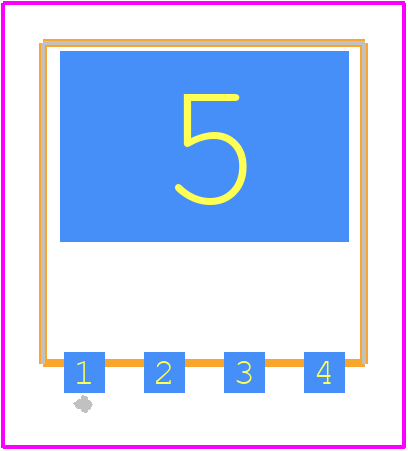

PCB Footprints
IDL04G65C5XUMA2 - Infineon PCB footprint - Other - Other - ThinPAK8x8
click to zoom
3D Models
IDL04G65C5XUMA2 - Infineon  - 3D model - Other - ThinPAK8x8
click to zoom

IDL04G65C5XUMA2 Details

  • Manufacturer Part Number:

    IDL04G65C5XUMA2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    8 X 8 MM, GREEN, PLASTIC, THINPAK, VSON-4

  • Country Of Origin:

    Austria, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Additional Feature:

    HIGH RELIABILITY, PD-CASE

  • Application:

    EFFICIENCY

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON CARBIDE

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.7 V

  • JESD-30 Code:

    S-PSSO-N4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Non-rep Pk Forward Current-Max:

    21 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Power Dissipation-Max:

    62 W

  • Rep Pk Reverse Voltage-Max:

    650 V

  • Reverse Current-Max:

    70 µA

  • Reverse Test Voltage:

    650 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    SINGLE

IDL04G65C5XUMA2 Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer or 4-layer PCB with a thermal via array under the device to improve heat dissipation. A minimum of 5 thermal vias with a diameter of 0.3 mm is recommended.
  • Infineon recommends using a soldering profile with a peak temperature of 260°C for 10-30 seconds. The device should be soldered using a no-clean flux and a solder alloy with a melting point above 217°C.
  • The recommended gate resistor value depends on the specific application, but a typical value is between 10 Ω to 22 Ω. A higher value can help reduce EMI, but may increase switching losses.
  • Infineon recommends using a TVS diode or a voltage clamp to protect the device from overvoltage conditions. For undervoltage protection, a voltage supervisor or a reset IC can be used to monitor the supply voltage and reset the device if it falls below a certain threshold.
  • The maximum allowed parasitic inductance depends on the specific application, but a typical value is around 1 nH to 5 nH. Higher parasitic inductance can lead to increased switching losses and reduced device performance.
