IDP2308XUMA1 - Infineon

Description: Power Factor Correction - PFC XDP SMPS TV/PC

Download IDP2308XUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

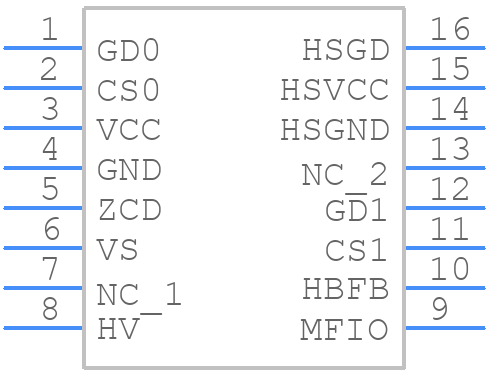

IDP2308XUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
IDP2308XUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-14-2023
click to zoom
3D Models
IDP2308XUMA1 - Infineon - 3D model - Small Outline Packages - PG-DSO-14-2023
click to zoom

IDP2308XUMA1 Details

  • Manufacturer Part Number:

    IDP2308XUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DSO-16/14

  • Country Of Origin:

    Germany, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    264 V

  • Input Voltage-Min:

    90 V

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14/16,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    IEC 62368-1

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    300 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

IDP2308XUMA1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to ensure efficient heat dissipation.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
  • Use X7R or X5R ceramic capacitors with a voltage rating of 10V or higher. The recommended capacitance values are 10uF for the input capacitor and 22uF for the output capacitor.
  • Check the input voltage, output load, and feedback resistors. Ensure that the feedback resistors are correctly connected and that the output voltage is within the specified range. Also, verify that the device is not overheating.
  • Yes, the IDP2308XUMA1 is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure that you follow the recommended operating conditions and design guidelines to ensure reliable operation.
