IEC-A-4 - Adam Tech

Description: Power F 3 POS 250VAC 15A RA 1 Port Right Angle PCB Mount Male Inlet

Download IEC-A-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IEC-A-4 - Adam Tech - PCB symbol
click to zoom
PCB Footprints

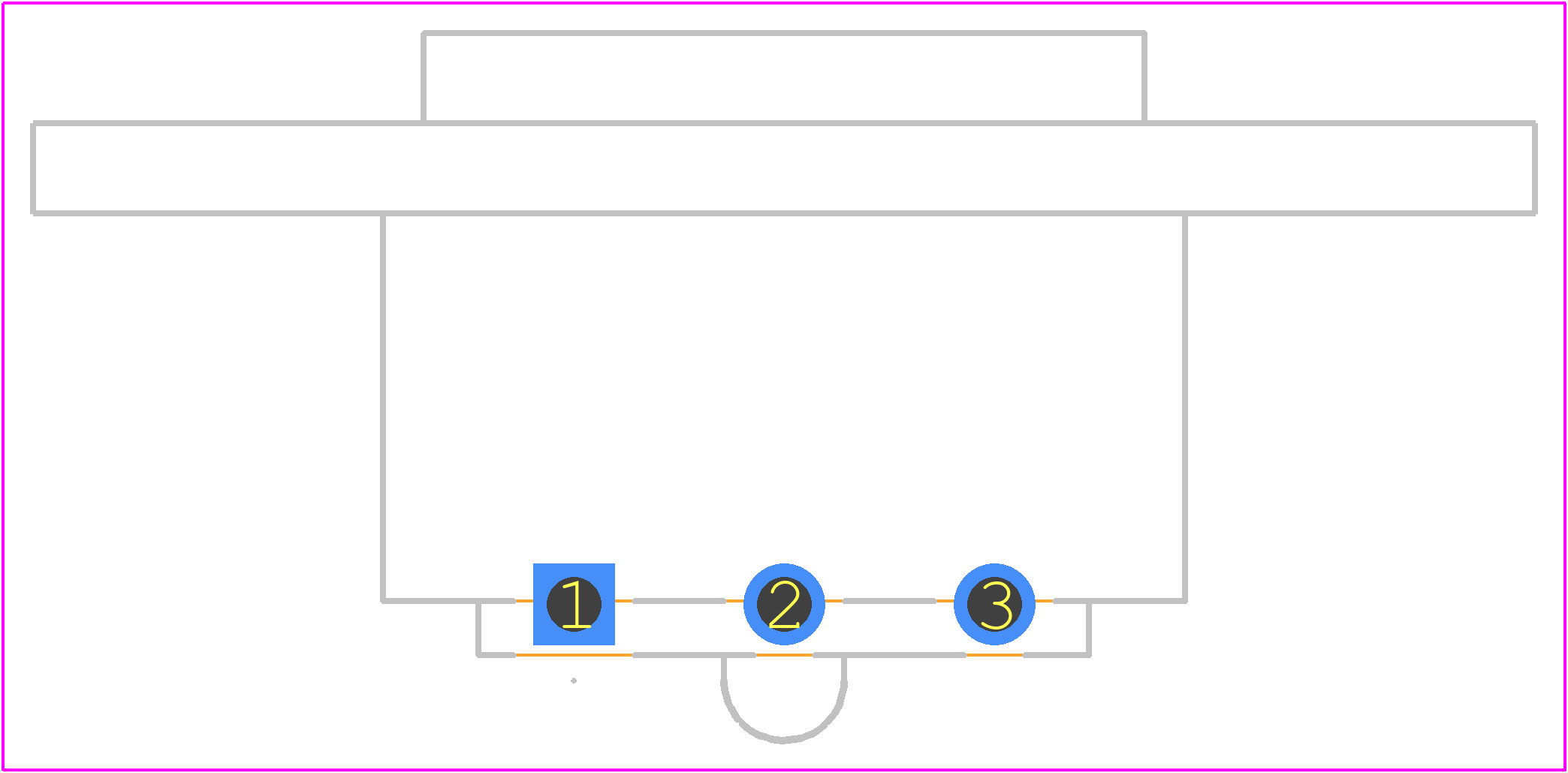

IEC-A-4 - Adam Tech PCB footprint - Other - Other - IEC-A-4-2
click to zoom
3D Models
IEC-A-4 - Adam Tech - 3D model - Other - IEC-A-4-2
click to zoom

IEC-A-4 Details

  • Manufacturer Part Number:

    IEC-A-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Adam Technologies Inc

  • YTEOL:

    7

  • Additional Feature:

    STANDARD:IEC-320

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NICKEL

  • Contact Finish Termination:

    Bright Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYCARBONATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    15A, 250V

  • Mounting Type:

    PANEL

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3

IEC-A-4 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the IEC-A-4 is 0°C to 40°C (32°F to 104°F), with a storage temperature range of -20°C to 70°C (-4°F to 158°F).
  • To ensure proper grounding, connect the grounding pin of the IEC-A-4 to a reliable earth ground point. Make sure the grounding connection is secure and meets the requirements of the relevant safety standards.
  • The IEC-A-4 has a maximum surge current rating of 100A for 1 second, which helps protect against voltage spikes and surges.
  • Yes, the IEC-A-4 is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 60664-1, which includes vibration testing up to 10g acceleration.
  • Use a soft, dry cloth to wipe down the connectors. Avoid using harsh chemicals, abrasive materials, or excessive moisture, which can damage the connectors or compromise their performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IEC-A-4 Overview

Use the download button to access the IEC-A-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IEC-A, or try a keyword search, such as Mains Power Connectors
