Technical Content
Part Image

IEC-EW-4 - Adam Tech

Description: Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle , 15A , 250VAC

Download IEC-EW-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IEC-EW-4 - Adam Tech - PCB symbol
click to zoom
PCB Footprints

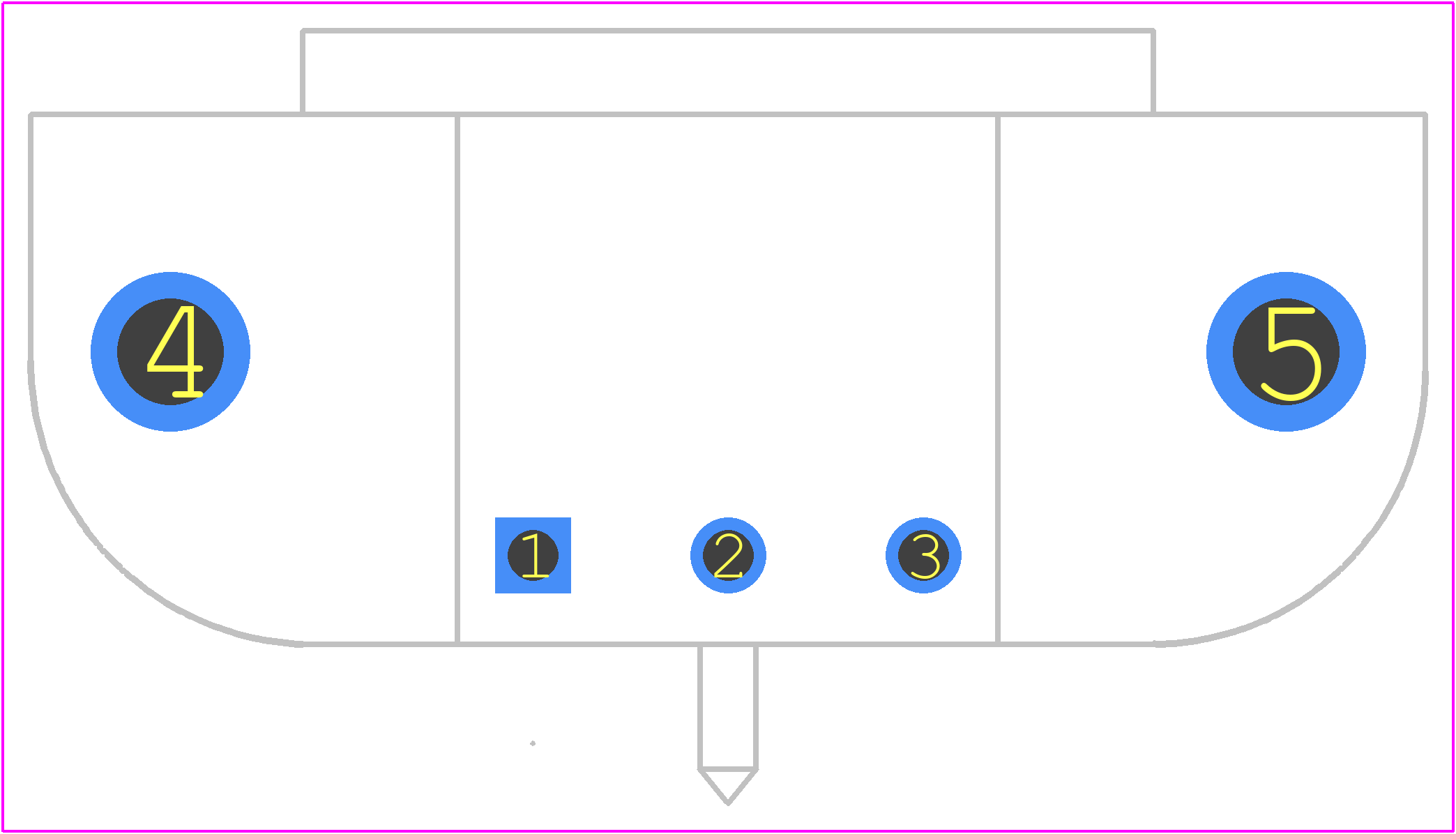

IEC-EW-4 - Adam Tech PCB footprint - Other - Other - IEC-EW-4-3
click to zoom
3D Models
IEC-EW-4 - Adam Tech - 3D model - Other - IEC-EW-4-3
click to zoom

IEC-EW-4 Details

  • Manufacturer Part Number:

    IEC-EW-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Adam Technologies Inc

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: IEC 320-C14

  • Body Breadth:

    1.094 inch

  • Body Depth:

    0.866 inch

  • Body Length:

    1.969 inch

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Coupling Type:

    SNAP

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mains Connector Rating:

    10A, 250 VAC

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA;UL;VDE

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3

IEC-EW-4 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.8 Nm (5-8 in-lbs) to ensure secure connections.
  • Yes, the IEC-EW-4 is designed to withstand vibrations up to 10g (IEC 60068-2-6) and can be used in high-vibration environments with proper mounting and cable management.
  • Yes, the IEC-EW-4 is designed to be compatible with standard IEC 60320 C14 inlets, ensuring easy integration with your existing infrastructure.
  • The IEC-EW-4 is designed to operate up to 2000 meters (6561 feet) above sea level, making it suitable for use in most industrial and commercial applications.
  • The IEC-EW-4 has a rating of IP20 (IEC 60529) and is designed to operate in environments with relative humidity up to 80%. However, it's not intended for use in wet or submerged environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IEC-EW-4 Overview

Use the download button to access the IEC-EW-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IEC-E, or try a keyword search, such as Mains Power Connectors
