IFS0105S12 footprint, schematic symbol and 3D model by XP POWER

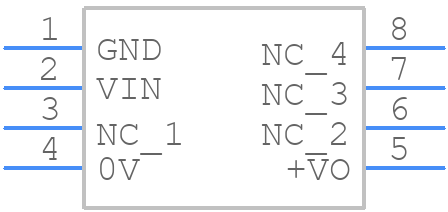

Symbol

click to zoom

PCB Footprints

IFS0105S12 - XP POWER PCB footprint - Other - Other - IFS0105S12-1

click to zoom

3D Models

IFS0105S12 - XP POWER - 3D model - Other - IFS0105S12-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IFS0105S12
Part Number IFS0105S12
Manufacturer XP POWER
Pin Count 8
Part Category Power Supply
Package Category Other
Footprint Name Other - IFS0105S12-1
Released Date Nov 7, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IFS0105S12 Details

Manufacturer Part Number:
IFS0105S12
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SMD-8
ECCN Code:
EAR99
Date Of Intro:
2020-02-26
Manufacturer:
XP Power
YTEOL:
0
Analog IC - Other Type:
DC-DC UNREGULATED POWER SUPPLY MODULE
Approvals:
CE, EN, UKCA, UL
Efficiency (Main Output):
83%
Input Voltage-Max:
5.5 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
R-PDMA-G8
Length:
13.2 mm
Line Regulation-Max:
1.2%
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.084 A
Output Voltage-Max:
12 V
Output Voltage-Min:
5 V
Output Voltage-Nom:
12 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Equivalence Code:
MODULE,8LEAD,.4
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
245
Protections:
SHORT CIRCUIT
Ripple Voltage (Main Out):
0.026 Vrms
Screening Level:
UL 62328-1
Seated Height-Max:
7.5 mm
Surface Mount:
YES
Technology:
HYBRID
Terminal Form:
GULL WING
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Total Power Output-Max:
1 W
Trim/Adjustable Output:
NO
Width:
8.5 mm

IFS0105S12 Frequently Asked Questions (FAQs)

XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
To ensure the input voltage is within the specified range, use a voltage regulator or a DC-DC converter to regulate the input voltage. Additionally, consider using a voltage monitoring circuit to detect any input voltage deviations and provide a warning or shutdown the system if necessary.
The IFS0105S12 can drive a maximum capacitive load of 10,000 μF. However, it's recommended to derate the capacitive load based on the operating frequency and temperature to ensure stable operation.
To protect the module from input voltage transients and surges, use a TVS (Transient Voltage Suppressor) diode or a surge protector device at the input of the module. This will help to absorb or clamp the voltage transients and prevent damage to the module.
The recommended input fuse rating for the IFS0105S12 is 1-2 A, depending on the input voltage and the system's power requirements. However, it's essential to consult the datasheet and the system's requirements to determine the appropriate fuse rating.
