IFX007TAUMA1 footprint, schematic symbol and 3D model by Infineon

Symbol

PCB Footprints

3D Models

IFX007TAUMA1 Details

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the power source, and the input and output capacitors should be placed close to the device.
To ensure stability, the output capacitor should be a low-ESR type with a minimum capacitance of 10uF. The output voltage can also be stabilized by adding a 10nF capacitor in parallel with the output capacitor.
The maximum input voltage that the IFX007TAUMA1 can handle is 40V, but it is recommended to operate the device within the specified input voltage range of 6.5V to 36V for optimal performance and reliability.
The device has built-in overcurrent protection and thermal shutdown. However, it is recommended to add external protection such as a fuse or a current limiter to prevent damage from excessive current. A heat sink can also be added to prevent overheating.
The IFX007TAUMA1 is rated for operation up to 150°C, but the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.

Expert Contribution

System Verified

Community Approved

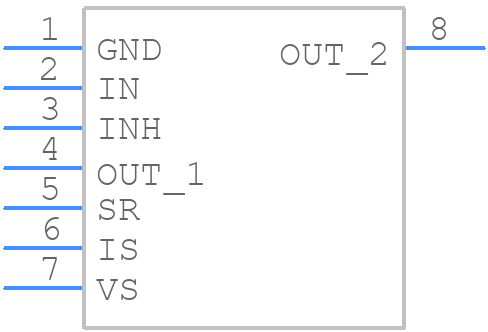

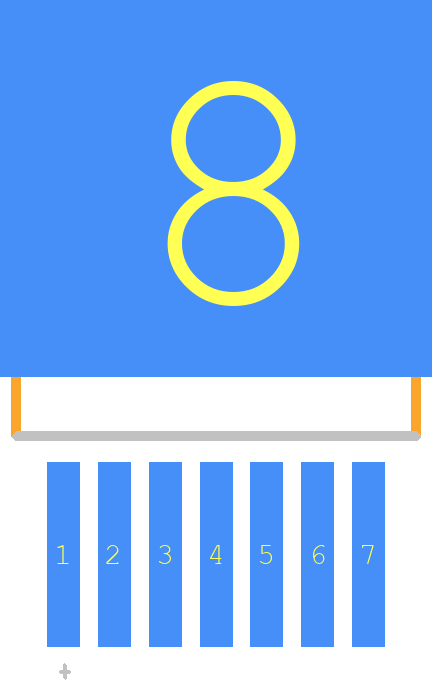

Use the download button to access the IFX007TAUMA1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IFX00, or try a keyword search, such as MOSFET Drivers
