IFX1040SJXUMA1 - Infineon

Description: CAN Interface IC CAN Transceiver High Speed CAN-Transceiver with Stand-By Mode and Bus wake-up

Download IFX1040SJXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

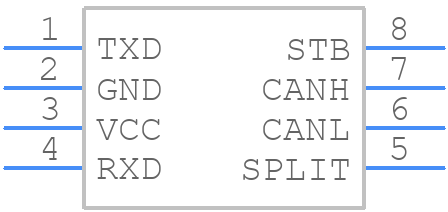

Symbol
IFX1040SJXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
IFX1040SJXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-8_H=1.75mm
click to zoom
3D Models
IFX1040SJXUMA1 - Infineon - 3D model - Small Outline Packages - PG-DSO-8_H=1.75mm
click to zoom

IFX1040SJXUMA1 Details

  • Manufacturer Part Number:

    IFX1040SJXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOP-8

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    4 mm

IFX1040SJXUMA1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Use a shielded enclosure, keep cables and wires away from the device, and use a common-mode choke or ferrite bead to filter out electromagnetic interference (EMI).
  • The maximum allowed voltage on the input pins is 40V, but it's recommended to keep it below 30V to ensure reliable operation and prevent damage to the device.
  • The device is rated for operation up to 150°C, but it's recommended to derate the current and voltage at higher temperatures to ensure reliable operation and prevent thermal runaway.
  • Use a logic analyzer or oscilloscope to monitor the device's inputs and outputs, and check for proper power supply and grounding. Consult the datasheet and application notes for troubleshooting guides.
