A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-frequency traces short and away from the edges of the board. Use a common mode choke and a shielded cable for the output stage.
To ensure stability, use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the output voltage is within the recommended range of 5V to 15V.
The maximum allowed input voltage ripple is 1Vpp. Exceeding this value may affect the device's performance and reliability.
The IFX1050G is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management and consider derating the device's output current at high temperatures.
Use an external current sense resistor and a fuse or a PTC (Positive Temperature Coefficient) thermistor to protect the device from overcurrent and short-circuit conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IFX1050G Overview

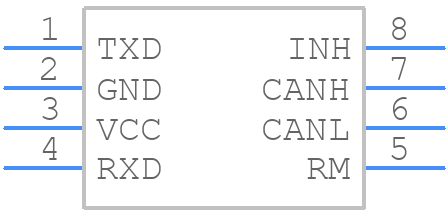

Use the download button to access the IFX1050G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IFX10,
or try a keyword search, such as Network Interfaces
