IFX1051LEXUMA1 - Infineon

Description: INFINEON - IFX1051LEXUMA1 - CAN Bus, CAN, 1, 1, 4.5 V, 5.5 V, TSON

Download IFX1051LEXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

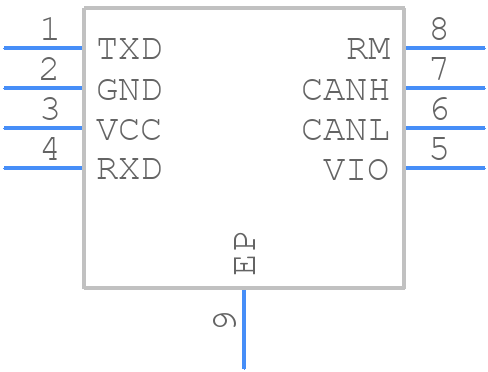

IFX1051LEXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
IFX1051LEXUMA1 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - PG-TSON-8
click to zoom
3D Models
IFX1051LEXUMA1 - Infineon - 3D model - Small Outline No-lead - PG-TSON-8
click to zoom

IFX1051LEXUMA1 Details

  • Manufacturer Part Number:

    IFX1051LEXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.15 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

IFX1051LEXUMA1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Use a shielded cable and connector, and ensure the PCB is designed with EMC in mind. Follow Infineon's application notes and guidelines for EMC compliance.
  • The maximum allowed voltage on the input pins is 40V, but it's recommended to keep it below 35V to ensure reliable operation and prevent damage to the device.
  • The device is rated for operation up to 150°C, but the maximum junction temperature (Tj) should not exceed 150°C. Ensure proper cooling and thermal management to prevent overheating.
  • Use a logic analyzer or oscilloscope to monitor the device's signals. Check the power supply, input signals, and output signals. Consult Infineon's application notes and technical support resources for guidance.
