IGO60R070D1AUMA1 - Infineon

Description: INFINEON - IGO60R070D1AUMA1 - MOSFET, N-CH, 600V, 31A, 150DEG C, 125W

Download IGO60R070D1AUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

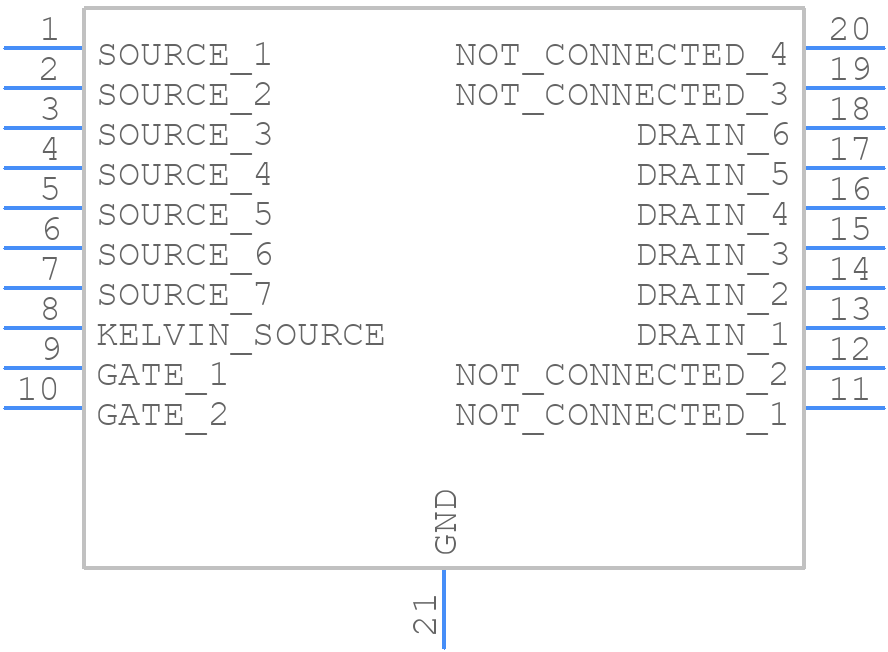

IGO60R070D1AUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

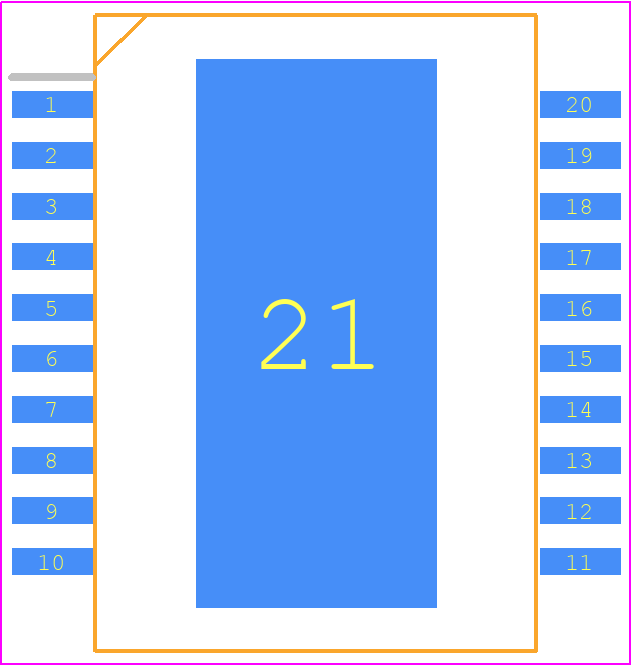

IGO60R070D1AUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - IGO60R070D1AUMA1-1
click to zoom
3D Models
IGO60R070D1AUMA1 - Infineon - 3D model - Small Outline Packages - IGO60R070D1AUMA1-1
click to zoom

IGO60R070D1AUMA1 Details

  • Manufacturer Part Number:

    IGO60R070D1AUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    3

IGO60R070D1AUMA1 Frequently Asked Questions (FAQs)

  • The maximum junction temperature is 175°C, but it's recommended to keep it below 150°C for reliable operation.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 1.5 K/W, and ensuring good airflow around the device.
  • The recommended gate resistance is between 10 ohms and 100 ohms to ensure proper switching and minimize ringing.
  • Yes, the IGO60R070D1AUMA1 is suitable for high-frequency applications up to 100 kHz, but be sure to follow the recommended layout and decoupling guidelines to minimize parasitic inductance and capacitance.
  • Use a suitable overvoltage protection circuit, such as a TVS diode or a zener diode, and implement overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IGO60R070D1AUMA1 Overview

Use the download button to access the IGO60R070D1AUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IGO60, or try a keyword search, such as Power Field-Effect Transistors
