The recommended PCB footprint for the IH10EB101K is a rectangular pad with dimensions of 2.5 mm x 1.5 mm, with a thermal pad of 2.5 mm x 2.5 mm.
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the PCB pads. Avoid applying excessive force or pressure during soldering.
The maximum operating temperature range for the IH10EB101K is -40°C to 150°C, with a storage temperature range of -40°C to 150°C.
Handle the IH10EB101K by the body, avoiding touching the leads or electrical contacts. Use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
The recommended reflow soldering profile for the IH10EB101K is a peak temperature of 260°C, with a dwell time of 20-30 seconds above 220°C.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IH10EB101K Overview

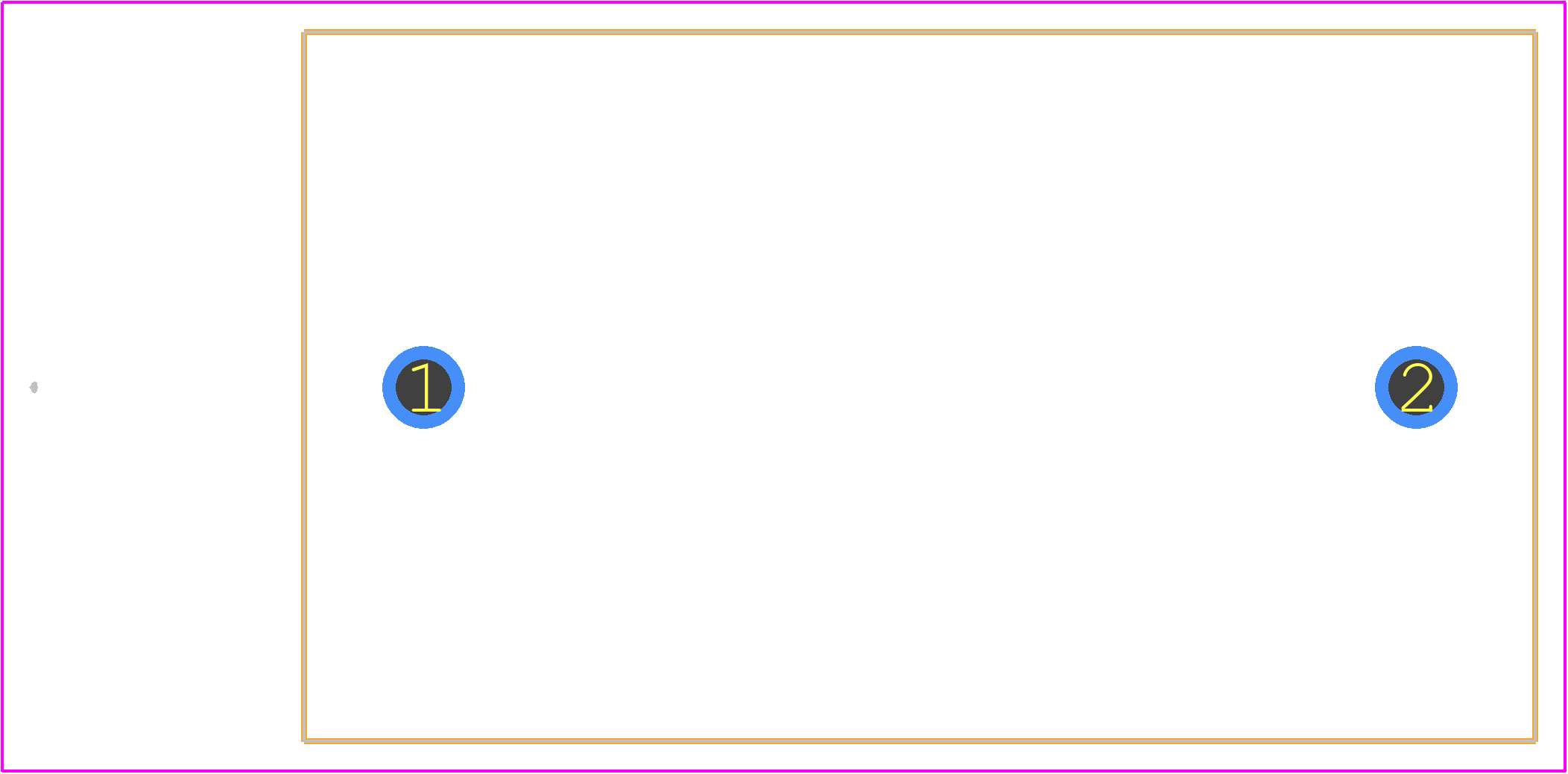

Use the download button to access the IH10EB101K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IH10E,
or try a keyword search, such as Fixed Inductors
