IHCM2321AAEG121N10 - Vishay

Description: Common Mode Chokes / Filters 120uH 30%

Download IHCM2321AAEG121N10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

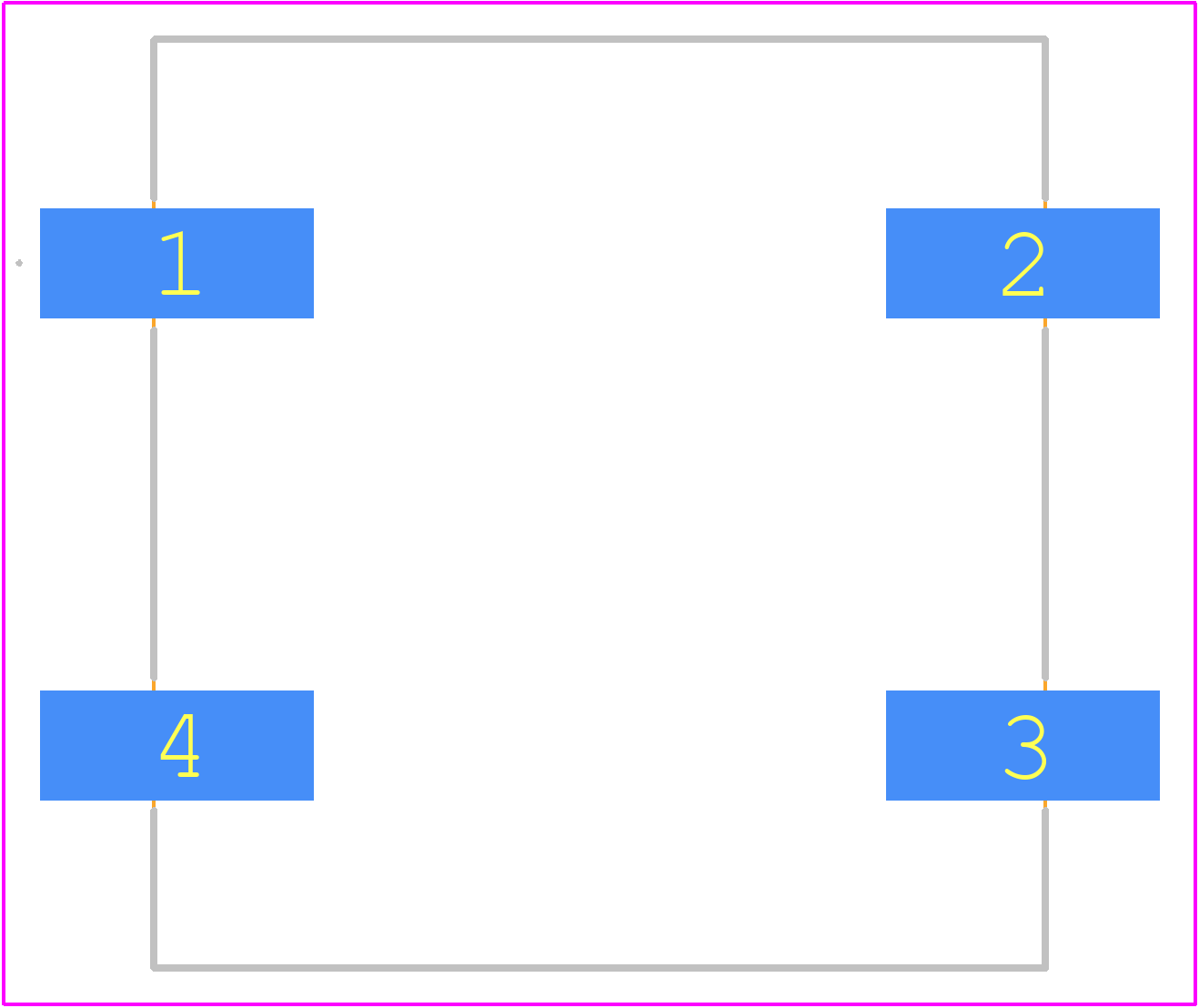

IHCM2321AAEG121N10 - Vishay PCB footprint - Other - Other - IHCM2321AAEG121N10-3
click to zoom
3D Models
IHCM2321AAEG121N10 - Vishay  - 3D model - Other - IHCM2321AAEG121N10-3
click to zoom

IHCM2321AAEG121N10 Details

  • Manufacturer Part Number:

    IHCM2321AAEG121N10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • DC Resistance-Max:

    0.0018 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    11.5 mm

  • Inductance:

    120 µH

  • Length:

    25.5 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    480 OHM Ω

  • Packing Method:

    TRAY

  • Rated Current:

    25 A

  • Width:

    24.5 mm

IHCM2321AAEG121N10 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a ground plane underneath the inductor is recommended to minimize radiation and ensure optimal performance. Keep the PCB traces short and wide to reduce resistance and inductance.
  • The IHCM2321AAEG121N10 has a maximum operating temperature of 125°C. Ensure good airflow around the inductor, and consider using a heat sink or thermal interface material if operating in high-temperature environments.
  • The SRF of the IHCM2321AAEG121N10 is not explicitly stated in the datasheet. However, it can be estimated using the inductor's inductance and capacitance values. Typically, the SRF is above 100 MHz for this inductor.
  • Yes, the IHCM2321AAEG121N10 is suitable for high-frequency switching applications up to 1 MHz. However, be aware of the inductor's core losses, which may increase at higher frequencies.
  • Consider factors such as the operating frequency, current rating, inductance value, and physical size when selecting an inductor. Consult the datasheet and application notes for guidance, and consider simulation tools or consulting with a Vishay expert if needed.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IHCM2321AAEG121N10 Overview

Use the download button to access the IHCM2321AAEG121N10 schematic symbol, PCB footprint, and 3D model.
