- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for IHCM2321AAEG301N10
- Part Number IHCM2321AAEG301N10
- Manufacturer Vishay
- Pin Count 4
- Part Category Inductor
- Package Category Other

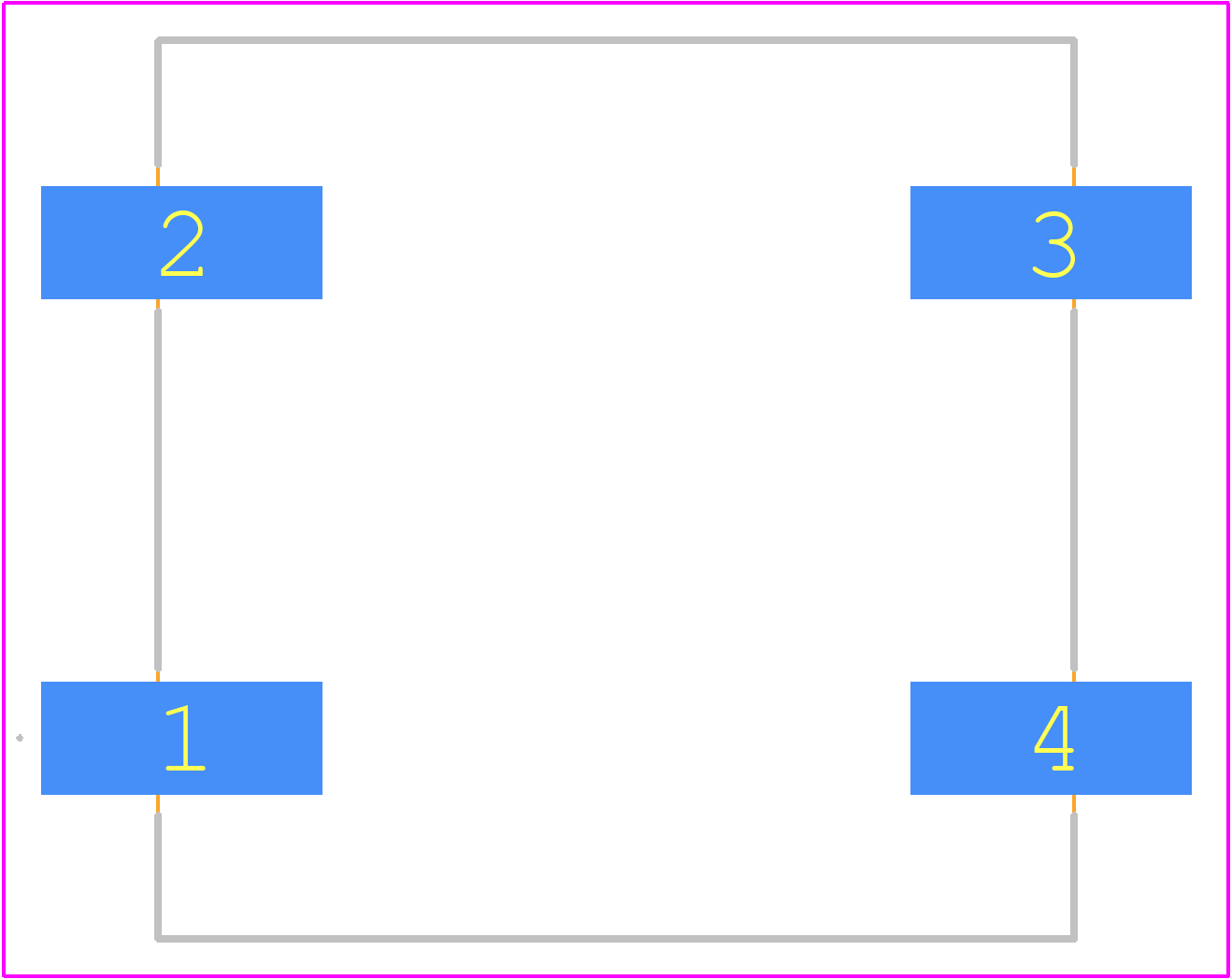

- Footprint Name Other - IHCM2321AAEG301N10-1
- Released Date Dec 8, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
IHCM2321AAEG301N10 Details
-
Manufacturer Part Number:
IHCM2321AAEG301N10
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8504.50.80.00
-
Manufacturer:
Vishay Intertechnologies
-
YTEOL:
0
-
DC Resistance-Max:
0.007 Ω
-
Filter Type:
DATA LINE FILTER
-
Height:
10.5 mm
-
Inductance:
300 µH
IHCM2321AAEG301N10 Frequently Asked Questions (FAQs)
-
Vishay recommends a symmetrical PCB layout with a solid ground plane, and keeping the inductor away from high-frequency components and traces. A minimum of 2 oz copper thickness is recommended for optimal performance.
-
Vishay provides thermal derating curves in the datasheet. Engineers should calculate the inductor's temperature rise based on the application's operating conditions and ensure it stays within the recommended temperature range.
-
Vishay recommends storing the inductors in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Handling should be done with electrostatic discharge (ESD) precautions, and the inductors should not be bent or flexed excessively.
-
While the IHCM2321AAEG301N10 is a high-quality component, it may not meet the specific requirements of high-reliability or aerospace applications. Engineers should consult Vishay's product portfolio for components specifically designed for these applications, such as the MIL-PRF-83446 or ESCC 3901 qualified inductors.
-
The optimal operating frequency range for the IHCM2321AAEG301N10 can be determined by consulting the inductor's impedance vs. frequency curve in the datasheet. Engineers should ensure the application's operating frequency falls within the range where the inductor's impedance is within the desired specifications.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
IHCM2321AAEG301N10 Overview
Use the download button to access the IHCM2321AAEG301N10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IHCM2,
or try a keyword search, such as Data Line Filters
