- Part Number IHCM2321AAEG481N10
- Manufacturer Vishay
- Pin Count 4
- Part Category Inductor
- Package Category Other

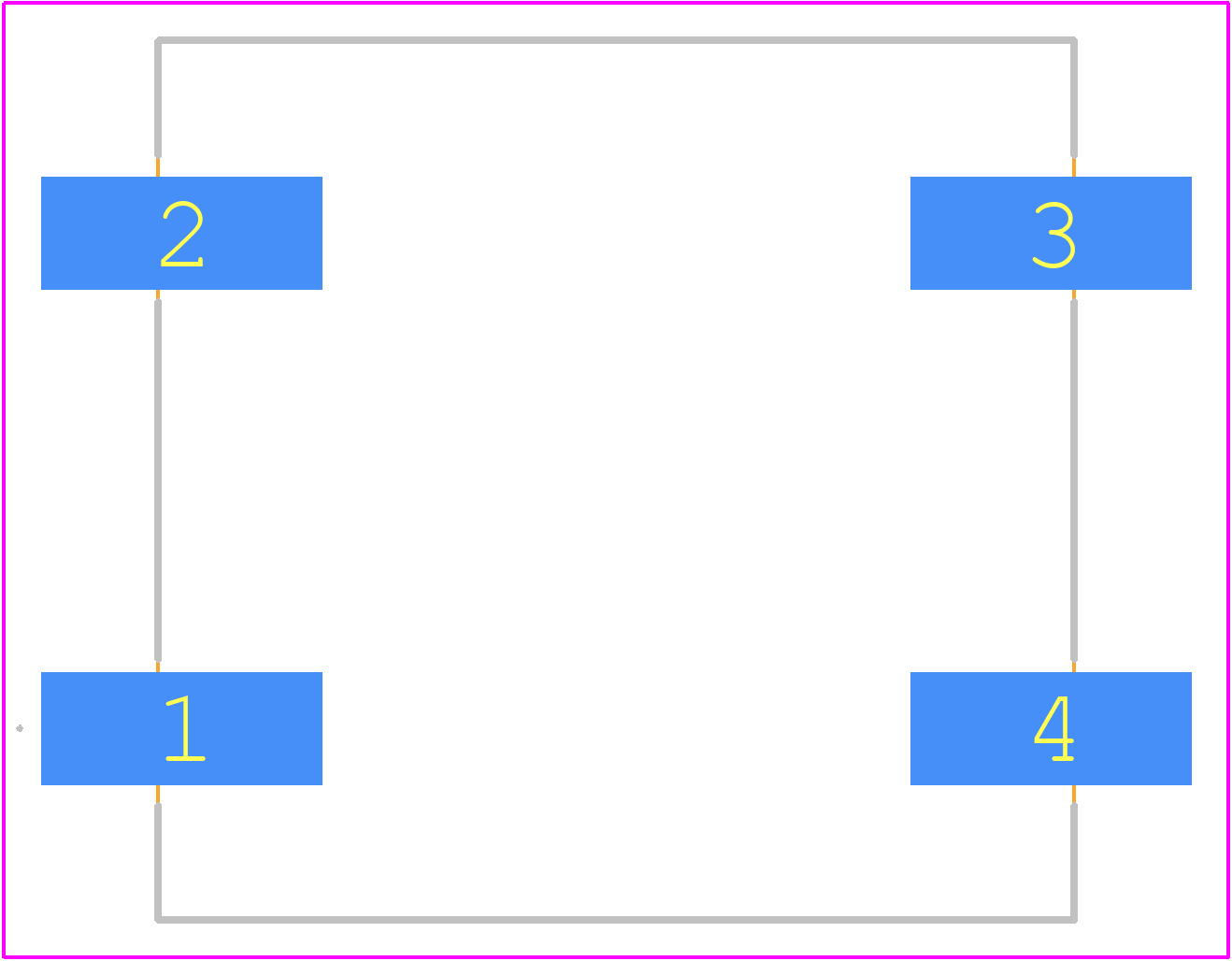

- Footprint Name Other - IHCM2321AAEG481N10-1
- Released Date Dec 8, 2021
- Last Modified Date Sep 21, 2024 2:00 PM UTC
- Pinout / Pin List Click Here (Member Only)
IHCM2321AAEG481N10 Details
-
Manufacturer Part Number:
IHCM2321AAEG481N10
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8504.50.80.00
-
Manufacturer:
Vishay Intertechnologies
-
YTEOL:
0
-
DC Resistance-Max:
0.0125 Ω
-
Filter Type:
DATA LINE FILTER
-
Height:
10 mm
-
Inductance:
480 µH
IHCM2321AAEG481N10 Frequently Asked Questions (FAQs)
-
A symmetrical layout with a solid ground plane and a small loop area is recommended to minimize radiation and electromagnetic interference (EMI).
-
Ensure good airflow around the inductor, and consider using a thermal pad or heat sink if operating at high temperatures or high currents.
-
The maximum allowable voltage is not explicitly stated in the datasheet, but it's generally recommended to derate the voltage by 10-20% to ensure reliable operation.
-
Yes, the IHCM2321AAEG481N10 is suitable for high-frequency switching applications up to 1 MHz, but be aware of potential core losses and skin effect at high frequencies.
-
Consider factors such as inductance value, current rating, DC resistance, and physical size when selecting an inductor. Consult the datasheet and application notes for guidance.
