IHCM2321AAEG900N10 - Vishay

IHCM2321AAEG900N10 Frequently Asked Questions (FAQs)

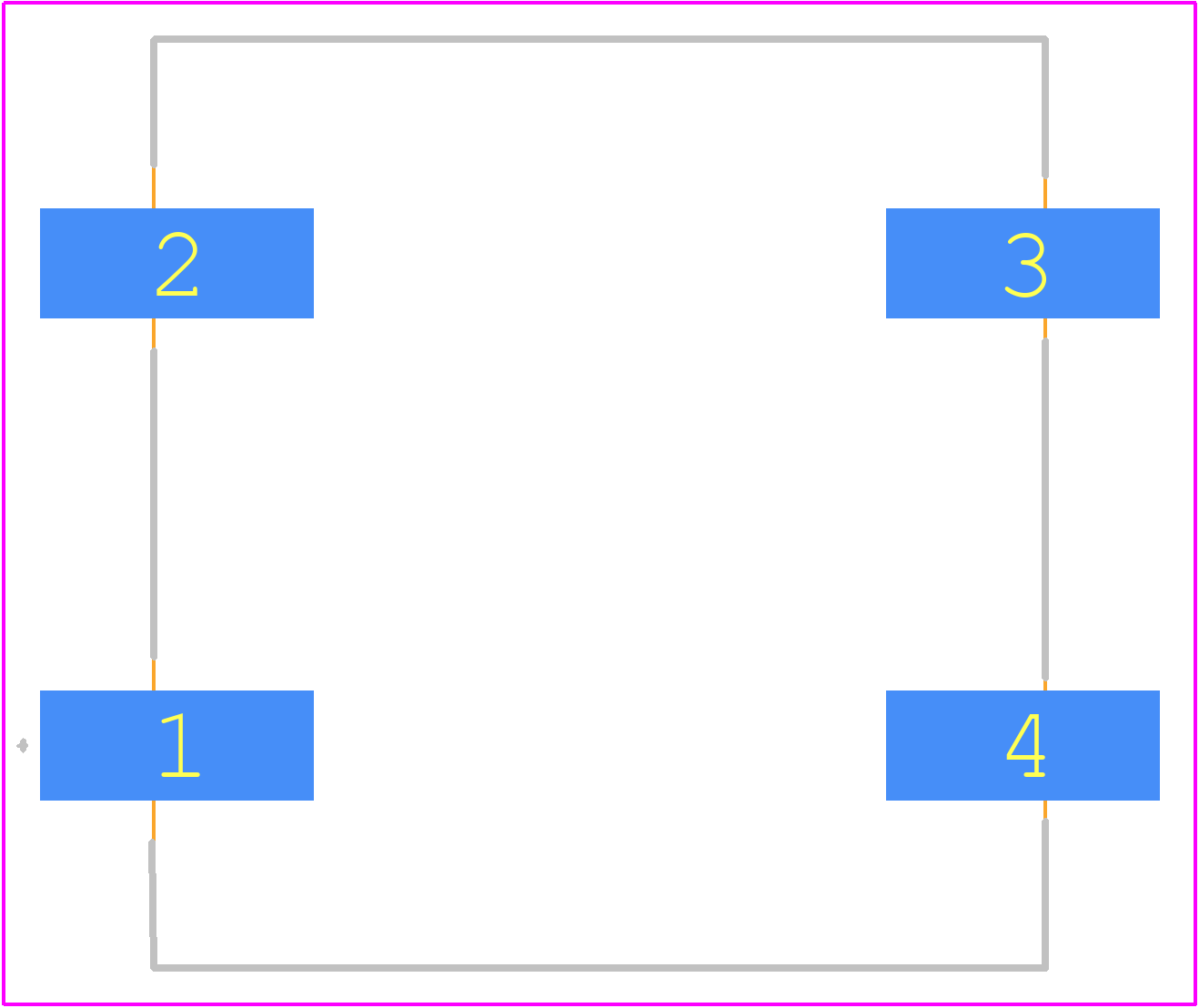

• What is the recommended PCB layout for optimal performance?
  The recommended PCB layout for the IHCM2321AAEG900N10 inductor involves keeping the component away from high-frequency signals, using a solid ground plane, and minimizing the distance between the inductor and the capacitor in the filter circuit.
• How do I handle the inductor's thermal considerations?
  The IHCM2321AAEG900N10 inductor has a maximum operating temperature of 125°C. To handle thermal considerations, ensure good airflow, use a heat sink if necessary, and avoid exceeding the maximum current rating to prevent overheating.
• What is the inductor's self-resonant frequency (SRF)?
  The self-resonant frequency (SRF) of the IHCM2321AAEG900N10 inductor is not explicitly stated in the datasheet. However, it can be estimated using the inductor's inductance value and the parasitic capacitance. Typically, the SRF is around 100-200 MHz for this inductor.
• Can I use this inductor in a high-reliability or aerospace application?
  The IHCM2321AAEG900N10 inductor is a commercial-grade component and may not meet the requirements for high-reliability or aerospace applications. Vishay Intertechnologies offers other inductor series, such as the IHLP series, which are designed for high-reliability applications.
• How do I select the correct inductor for my specific application?
  To select the correct inductor, consider factors such as the operating frequency, current rating, inductance value, and physical size. Consult the datasheet and application notes, and use online tools or consult with a Vishay Intertechnologies representative if necessary.
