A symmetrical layout with a solid ground plane and a minimum of 1.5 mm clearance from other components is recommended. Refer to Vishay's application note AN1065 for more details.
Ensure your PCB traces and vias can handle the high current. Use thick copper traces (at least 2 oz) and multiple vias to reduce resistance and thermal stress. Consult Vishay's application note AN1066 for guidance.
The SRF is not explicitly stated in the datasheet, but it can be estimated using the inductance value and the parasitic capacitance. For the IHDF1300AEEH4R7K10, the SRF is approximately 150 MHz.
The IHDF1300AEEH4R7K10 is rated for operation up to 155°C. However, derating may be necessary for temperatures above 125°C. Consult Vishay's application note AN1031 for temperature derating guidelines.
Consider factors such as inductance value, current rating, DC resistance, and physical size. Use Vishay's online selection tools or consult with a Vishay representative to find the optimal inductor for your design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IHDF1300AEEH4R7K10 Overview

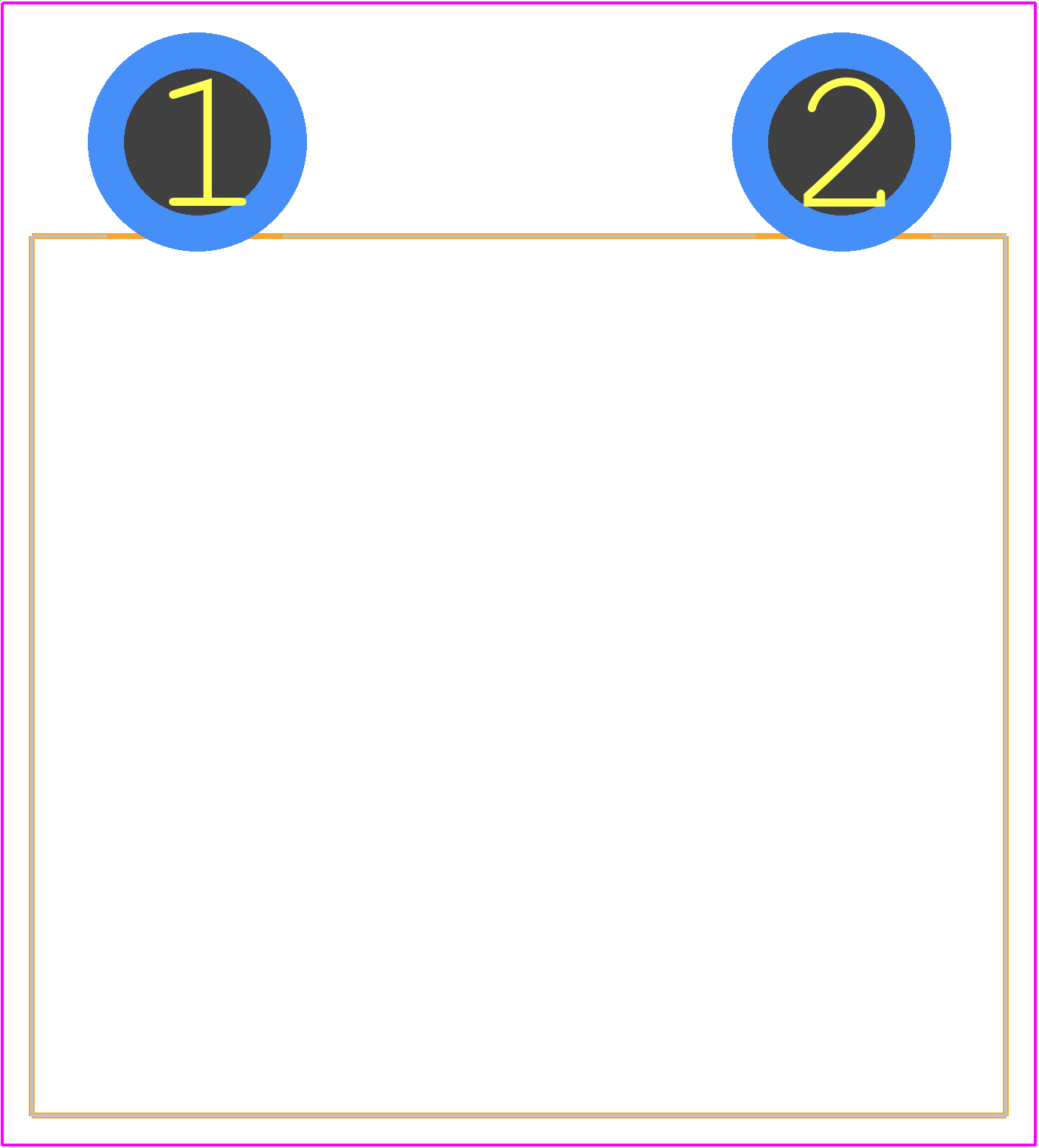

Use the download button to access the IHDF1300AEEH4R7K10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IHDF1,
or try a keyword search, such as Fixed Inductors
