IHDM1008BCEV1R2M30 footprint, schematic symbol and 3D model by Vishay

Symbol

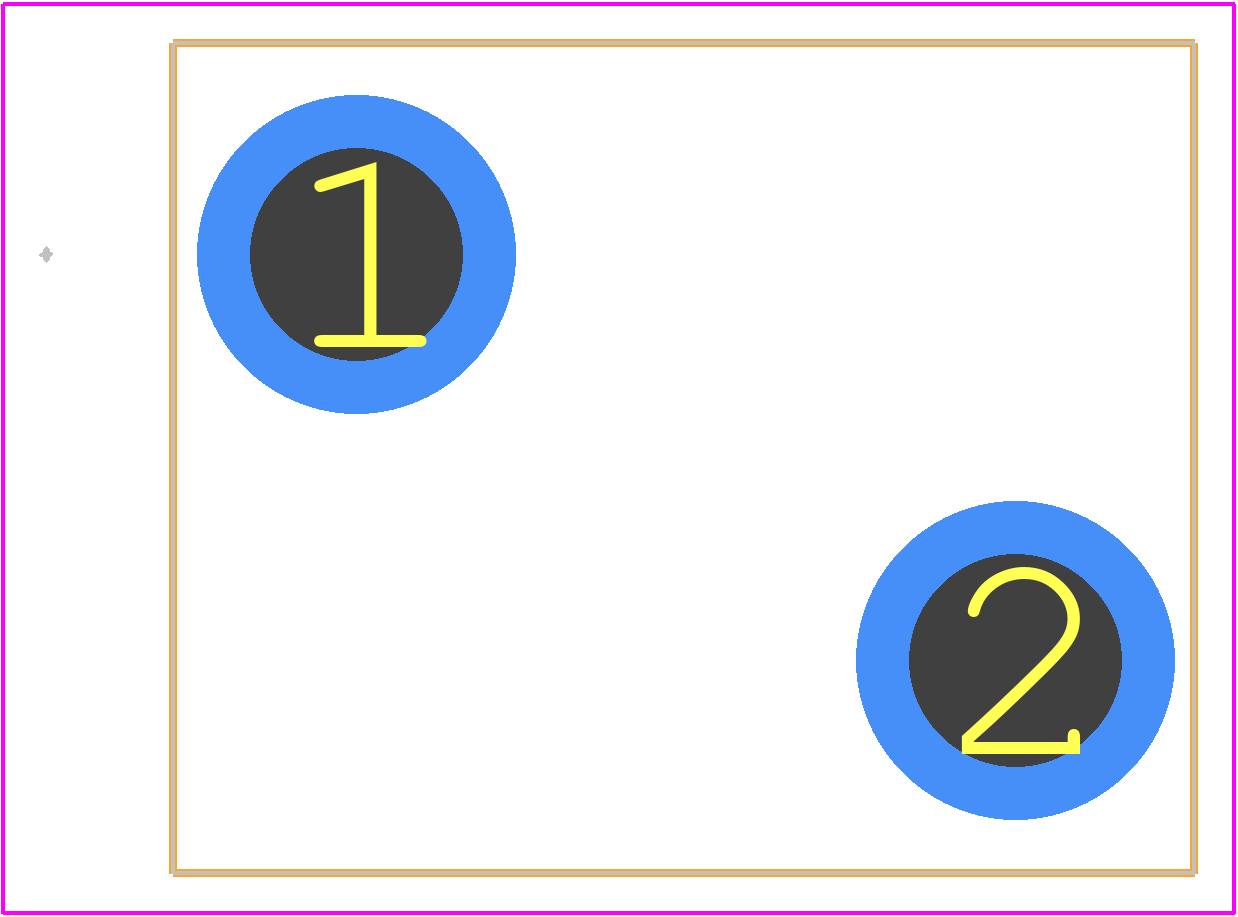

PCB Footprints

3D Models

IHDM1008BCEV1R2M30 Details

The thermal resistance (Rth) of the IHDM1008BCEV1R2M30 is 2.5°C/W (junction-to-case) and 10°C/W (junction-to-ambient) when mounted on a 1 inch² (6.45 cm²) copper pad.
Yes, the IHDM1008BCEV1R2M30 is suitable for high-frequency applications up to 1 MHz due to its low ESL (Equivalent Series Inductance) of 1.5 nH and low ESR (Equivalent Series Resistance) of 1.2 mΩ.
Yes, the IHDM1008BCEV1R2M30 is compatible with lead-free soldering and meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.
The recommended land pattern for the IHDM1008BCEV1R2M30 is a rectangular pad with a size of 1.27 mm x 2.54 mm (0.05 in x 0.1 in) and a thermal pad size of 3.81 mm x 3.81 mm (0.15 in x 0.15 in).
Yes, the IHDM1008BCEV1R2M30 is AEC-Q200 qualified, which means it meets the requirements for automotive applications, including high reliability and robustness.

Expert Contribution

System Verified

Community Approved

Use the download button to access the IHDM1008BCEV1R2M30 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IHDM1, or try a keyword search, such as Fixed Inductors
