IHDM1008BCEV2R2M30 - Vishay

Description: Inductor Power Wirewound 2.2uH 20% 100KHz Powdered Iron 70A 0.0004Ohm DCR RDL

Download IHDM1008BCEV2R2M30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

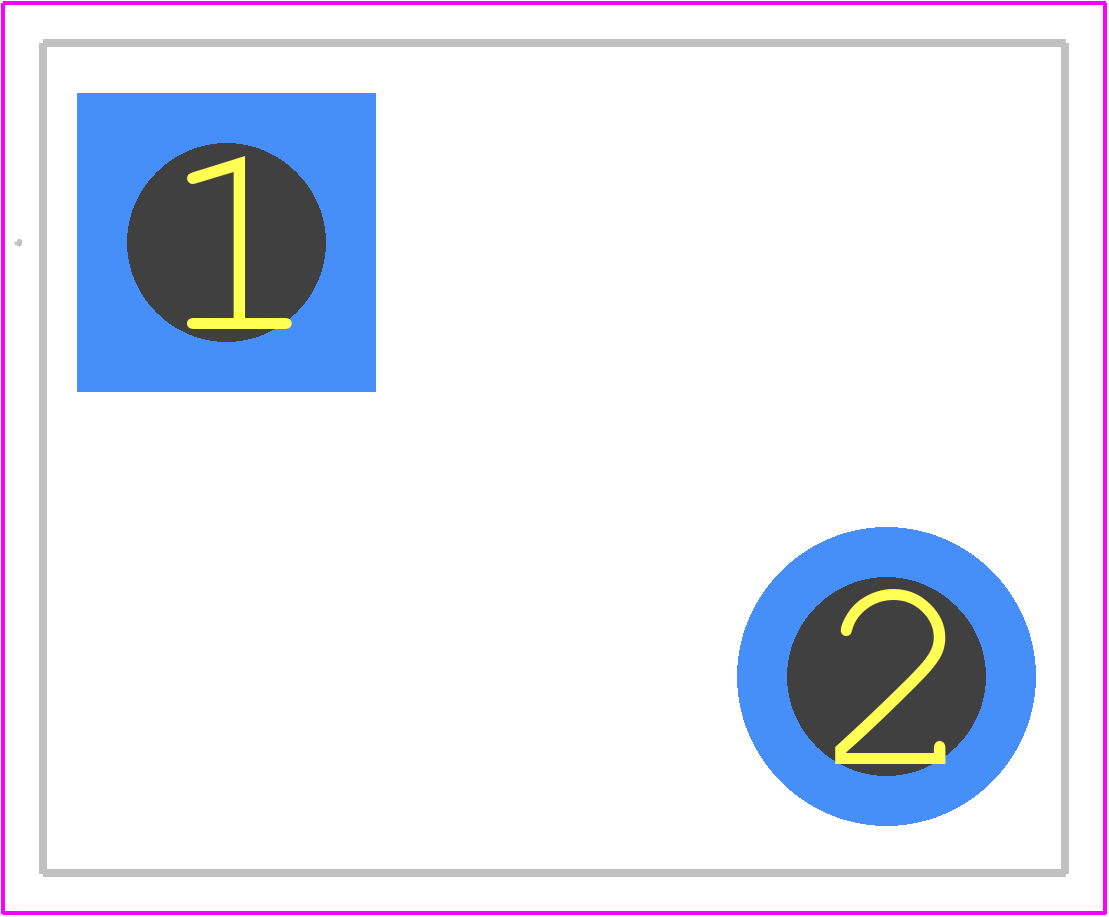

IHDM1008BCEV2R2M30 - Vishay PCB footprint - Other - Other - IHDM1008BCEV2R2M30-7
click to zoom
3D Models
IHDM1008BCEV2R2M30 - Vishay  - 3D model - Other - IHDM1008BCEV2R2M30-7
click to zoom

IHDM1008BCEV2R2M30 Details

  • Manufacturer Part Number:

    IHDM1008BCEV2R2M30

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    31 Weeks, 6 Days

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.8

  • Construction:

    Rectangular

  • Core Material:

    IRON ALLOY

  • DC Resistance:

    0.00048 Ω

  • Inductance-Nom (L):

    2.2 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    180 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    21.75 mm

  • Package Length:

    25.53 mm

  • Package Style:

    Radial

  • Package Width:

    20.73 mm

  • Packing Method:

    Bulk

  • Rated Current-Max:

    85 A

  • Self Resonance Frequency:

    70 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    FLAT

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

IHDM1008BCEV2R2M30 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the IHDM1008BCEV2R2M30 is a rectangular pad with a size of 1.1 mm x 0.8 mm, with a thermal pad size of 2.5 mm x 2.5 mm. The recommended solder mask clearance is 0.1 mm.
  • To ensure reliable soldering, use a soldering iron with a temperature of 260°C to 280°C, and apply a small amount of solder paste to the PCB pads. Use a soldering technique that minimizes the risk of overheating the component.
  • The maximum operating temperature range for the IHDM1008BCEV2R2M30 is -55°C to 150°C. However, the device is only guaranteed to meet its specifications within the range of -40°C to 125°C.
  • Handle the IHDM1008BCEV2R2M30 by the body only, avoiding touching the leads or any other exposed metal parts. Use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
  • Store the IHDM1008BCEV2R2M30 in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 30°C, with a relative humidity of 60% or less.
