IHDM1008BCEV2R2M3A - Vishay

Description: 2.2 µH Unshielded Drum Core, Wirewound Inductor 70 A 0.4mOhm Max Nonstandard

Download IHDM1008BCEV2R2M3A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

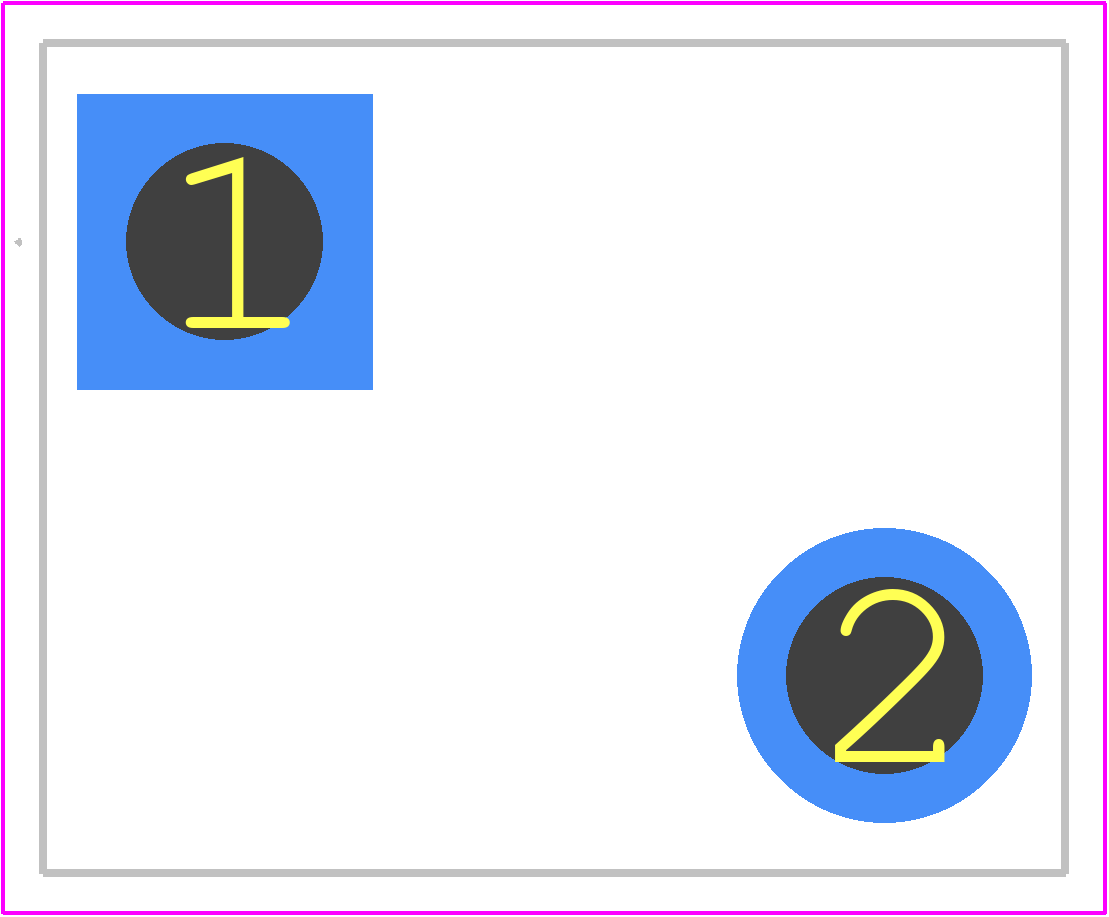

IHDM1008BCEV2R2M3A - Vishay PCB footprint - Other - Other - IHDM1008BCEV2R2M3A-2
click to zoom
3D Models
IHDM1008BCEV2R2M3A - Vishay  - 3D model - Other - IHDM1008BCEV2R2M3A-2
click to zoom

IHDM1008BCEV2R2M3A Details

  • Manufacturer Part Number:

    IHDM1008BCEV2R2M3A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HIGH CURRENT THROUGH-HOLE INDUCTOR

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.8

  • Construction:

    Rectangular

  • Core Material:

    POWDERED IRON

  • DC Resistance:

    0.0004 Ω

  • Inductance-Nom (L):

    2.2 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    180 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    21.75 mm

  • Package Length:

    25.53 mm

  • Package Style:

    Radial

  • Package Width:

    20.73 mm

  • Rated Current-Max:

    70 A

  • Self Resonance Frequency:

    45 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    FLAT

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

IHDM1008BCEV2R2M3A Frequently Asked Questions (FAQs)

  • Vishay recommends a PCB layout with a solid copper plane on the bottom layer, connected to the thermal pad of the IHDM1008BCEV2R2M3A, to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended.
  • Vishay recommends using a soldering profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. The component should be soldered using a solder with a melting point of 217°C (423°F) or higher.
  • Vishay recommends derating the maximum voltage by 10% to ensure reliable operation. For example, if the maximum voltage rating is 100V, the derated voltage would be 90V.
  • Vishay recommends storing the IHDM1008BCEV2R2M3A in its original packaging, away from direct sunlight, moisture, and extreme temperatures. During shipping, the component should be protected from mechanical stress and electrostatic discharge.
  • Vishay recommends a torque of 0.5 Nm to 1.5 Nm (0.37 lbf·in to 1.06 lbf·in) for the screw terminals to ensure reliable connections.
