A recommended PCB layout for optimal thermal performance would be to use a large copper pad under the device, connected to a thermal via to the bottom layer, and to use thermal relief patterns on the pads to reduce thermal resistance.
To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a soldering flux to the pads. Also, ensure the PCB is clean and free of oxidation, and use a solder with a melting point above 217°C.
The maximum allowed voltage derating for the IHDM1008BCEV3R3M30 is 80% of the rated voltage, which is 100V. Therefore, the maximum allowed voltage derating is 80V.
While the IHDM1008BCEV3R3M30 is not specifically designed for high-frequency applications, it can be used up to 100 kHz with proper PCB layout and decoupling. However, it's recommended to consult with a Vishay application engineer for specific guidance.
The recommended storage condition for the IHDM1008BCEV3R3M30 is in a dry, cool place with a temperature range of 5°C to 30°C and relative humidity below 60%. Avoid storing the devices in direct sunlight or near heat sources.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IHDM1008BCEV3R3M30 Overview

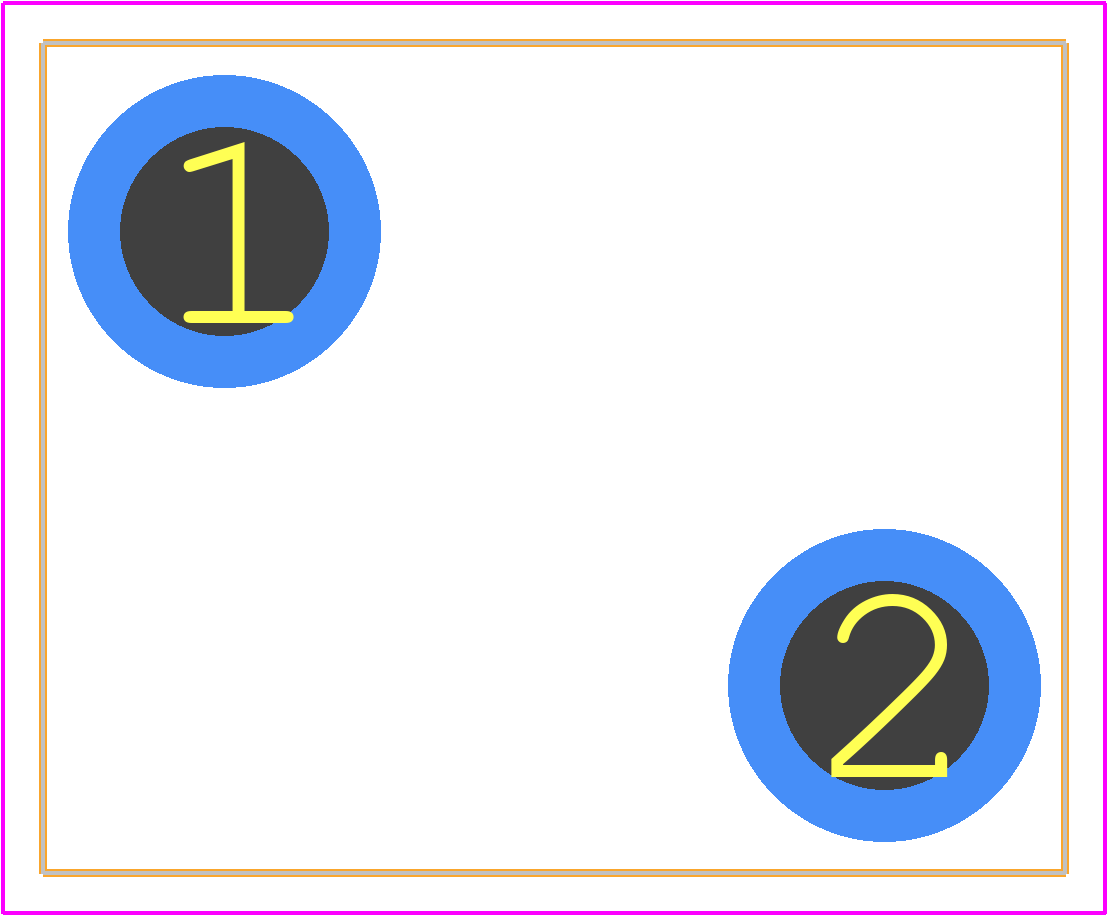

Use the download button to access the IHDM1008BCEV3R3M30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IHDM1,
or try a keyword search, such as Fixed Inductors
