IHDM1107BBEV120M30 - Vishay

Description: High Current, Through-Hole Inductor, Edge-Wound Series

Download IHDM1107BBEV120M30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

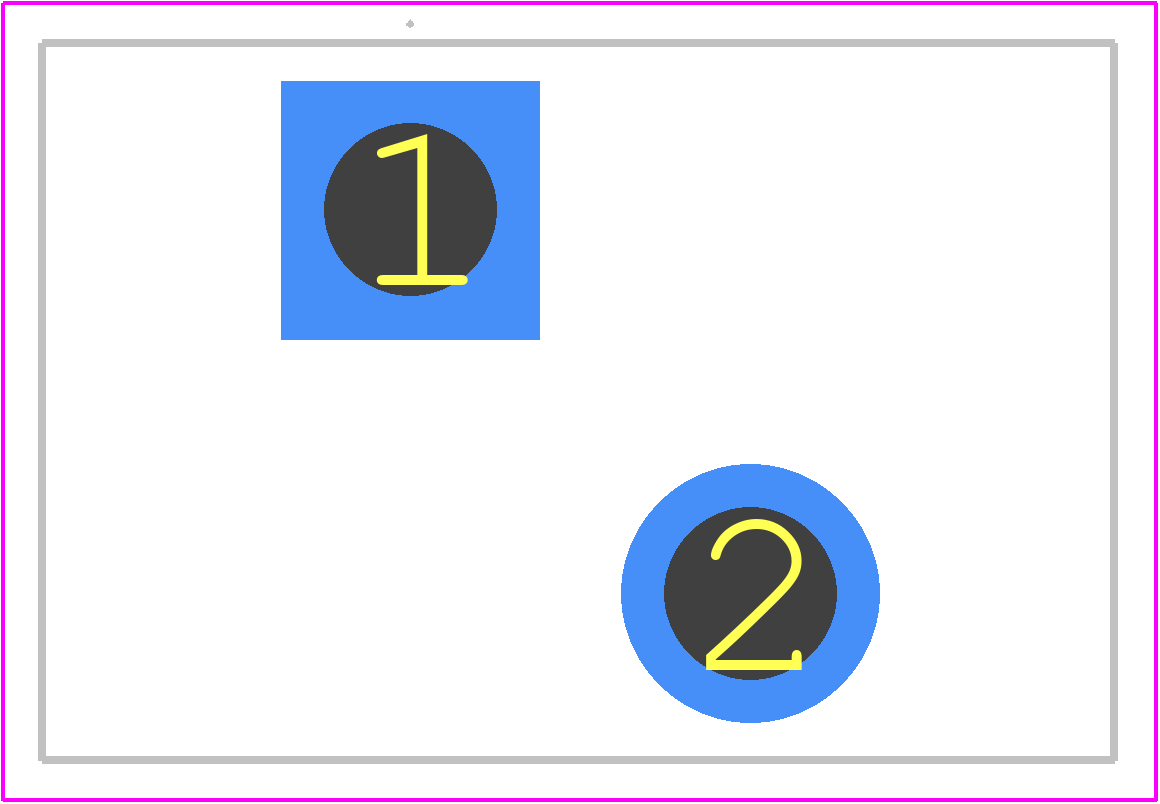

IHDM1107BBEV120M30 - Vishay PCB footprint - Other - Other - 26.80x17.90x22.4mm
click to zoom
3D Models
IHDM1107BBEV120M30 - Vishay  - 3D model - Other - 26.80x17.90x22.4mm
click to zoom

IHDM1107BBEV120M30 Details

  • Manufacturer Part Number:

    IHDM1107BBEV120M30

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Construction:

    Rectangular

  • Core Material:

    IRON ALLOY

  • DC Resistance:

    0.0026 Ω

  • Inductance-Nom (L):

    12 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Length:

    4.15 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    180 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    22.4 mm

  • Package Length:

    26.8 mm

  • Package Style:

    Radial

  • Package Width:

    17.9 mm

  • Rated Current-Max:

    35 A

  • Self Resonance Frequency:

    21 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    FLAT

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%
