Part Image

IHDV1008BBEV100M30 - Vishay

Description: 10 µH Unshielded Wirewound Inductor 30 A 2.9mOhm Max Radial - 4 Leads -40°C ~ 180°C

Download IHDV1008BBEV100M30 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this IHDV1008BBEV100M30 model

Email notifications will be applied after download.

Send part feedback

Symbol

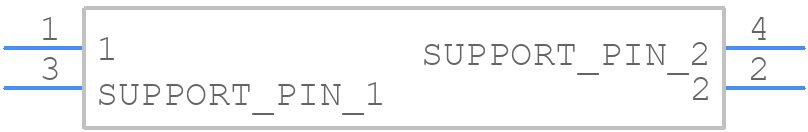

IHDV1008BBEV100M30 - Vishay - PCB symbol

PCB Footprints

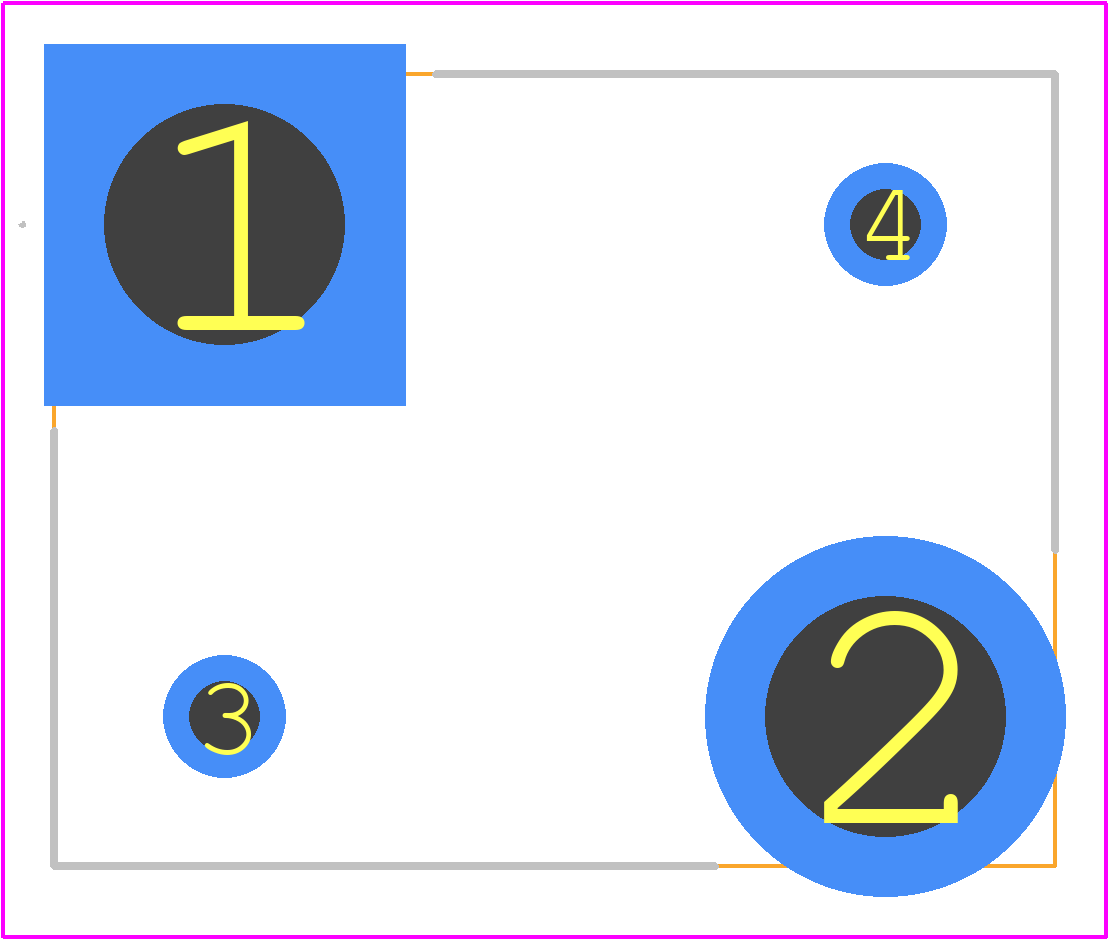

IHDV1008BBEV100M30 - Vishay PCB footprint - Other - Other - IHDV1008BBEV100M30-2

3D Models

IHDV1008BBEV100M30 - Vishay - 3D model - Other - IHDV1008BBEV100M30-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for IHDV1008BBEV100M30
Part Number IHDV1008BBEV100M30
Manufacturer Vishay
Pin Count 4
Part Category Inductor
Package Category Other
Footprint Name Other - IHDV1008BBEV100M30-2
Released Date Nov 15, 2025
Last Modified Date Nov 15, 2025 1:32 PM UTC
Pinout / Pin List Click Here (Member Only)

IHDV1008BBEV100M30 Details

Manufacturer Part Number:
IHDV1008BBEV100M30
Manufacturer:
Vishay Intertechnologies

Trust Checks

Community Provided

System Verified

Community Approved

IHDV1008BBEV100M30 Overview

Use the download button to access the IHDV1008BBEV100M30 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IHDV1, or try a keyword search, such as Fixed Inductors
