Part Image

IHL0205D1509 - XP POWER

Description: XP Power Through Hole 2W Isolated DC-DC Converter, Vin 4.5 → 5.5 V dc, I/O isolation 5.2kV dc

Download IHL0205D1509 Model

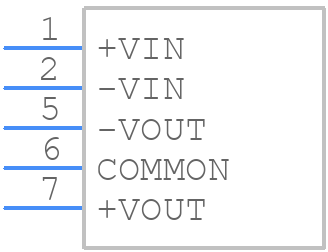

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IHL0205D1509 - XP POWER PCB footprint - Other - Other - IHL0205D1509-2
click to zoom
3D Models
IHL0205D1509 - XP POWER  - 3D model - Other - IHL0205D1509-2
click to zoom

IHL0205D1509 Details

  • Manufacturer Part Number:

    IHL0205D1509

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • Risk Rank:

    2.3

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IHL0205D1509 Overview

Use the download button to access the IHL0205D1509 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IHL02, or try a keyword search, such as Power Supply Modules
