IHLP5050EZER1R0M5A footprint, schematic symbol and 3D model by Vishay

Symbol

PCB Footprints

3D Models

IHLP5050EZER1R0M5A Details

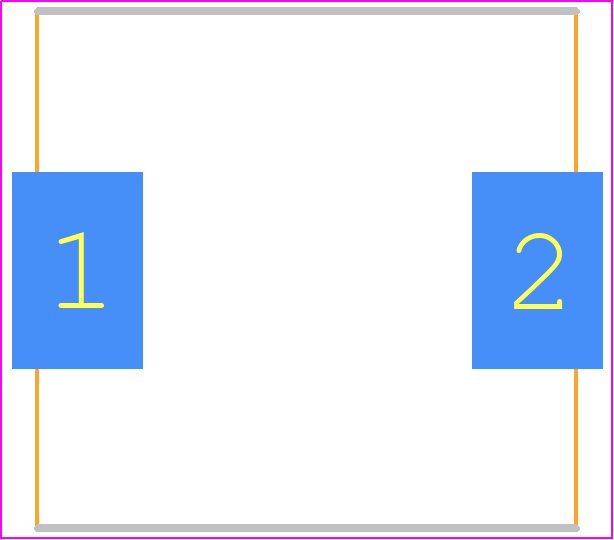

The recommended land pattern for IHLP5050EZER1R0M5A is a rectangular pad with a size of 5.5 mm x 3.5 mm, with a non-solder mask defined (NSMD) pad and a solder mask opening of 4.5 mm x 2.5 mm.
Handle the component by the edges or the terminals, avoiding touching the core or the windings. Use a vacuum pickup or a gentle grip to prevent mechanical stress. Avoid bending, flexing, or twisting the component during assembly.
The maximum allowable voltage for IHLP5050EZER1R0M5A is 50 V, which is the rated voltage of the inductor. Exceeding this voltage may cause damage to the component.
The saturation current of IHLP5050EZER1R0M5A can be determined by referring to the inductor's datasheet, which provides a graph of inductance vs. current. The saturation current is the point at which the inductance begins to decrease significantly with increasing current.
Yes, IHLP5050EZER1R0M5A is compatible with high-temperature soldering processes, including wave soldering and reflow soldering, with a maximum temperature rating of 260°C for 30 seconds.

Community Provided

System Verified

Community Approved

Use the download button to access the IHLP5050EZER1R0M5A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IHLP5, or try a keyword search, such as Fixed Inductors
