The recommended land pattern for IHLP5050EZER3R3M5A is available in the Vishay Intertechnologies' Land Pattern Recommendation document, which can be found on their website. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
While IHLP5050EZER3R3M5A is rated for operation up to 125°C, it's essential to consider the derating curves and temperature coefficients provided in the datasheet to ensure the inductor can handle the specific temperature requirements of your application. Additionally, it's recommended to consult with Vishay's application engineers for guidance on high-temperature applications.
To select the correct inductor value, you need to consider the input voltage, output voltage, switching frequency, and output current of your DC-DC converter. You can use online tools, such as Vishay's Inductor Selection Guide or other inductor selection software, to help determine the optimal inductor value based on your design requirements.
Yes, IHLP5050EZER3R3M5A is compatible with lead-free soldering processes. Vishay Intertechnologies has qualified this inductor for use with lead-free soldering, and it meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.
The typical tolerance for the inductance value of IHLP5050EZER3R3M5A is ±20%. This means that the actual inductance value may vary by up to 20% from the nominal value specified in the datasheet. It's essential to consider this tolerance when designing your circuit to ensure optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IHLP5050EZER3R3M5A Overview

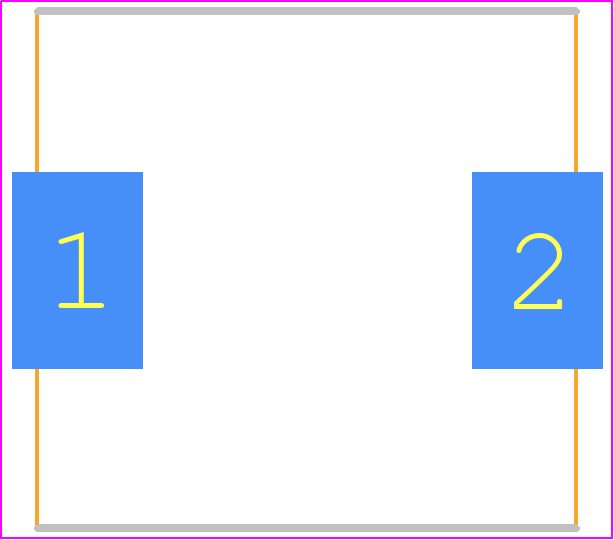

Use the download button to access the IHLP5050EZER3R3M5A schematic symbol, PCB footprint, and 3D model.
