IHLP6767GZER1R0M51 - Vishay

Description: 1 µH Shielded Molded Inductor 53 A 1.46mOhm Max Nonstandard

Download IHLP6767GZER1R0M51 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IHLP6767GZER1R0M51 - Vishay - PCB symbol
click to zoom

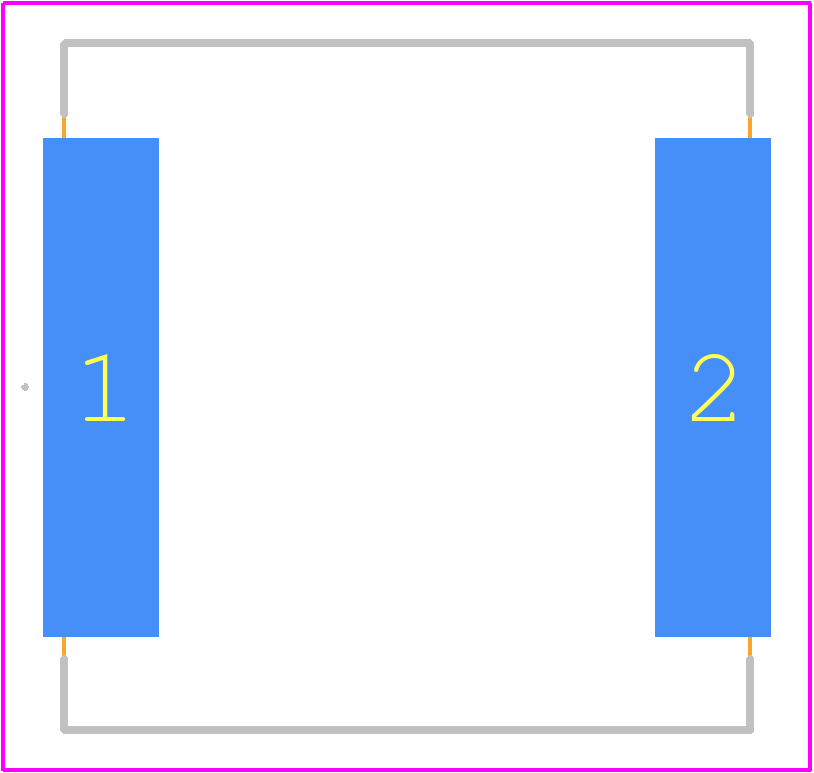

PCB Footprints
IHLP6767GZER1R0M51 - Vishay PCB footprint - Other - Other - IHLP6767GZER1R0M51-2
click to zoom
3D Models
IHLP6767GZER1R0M51 - Vishay - 3D model - Other - IHLP6767GZER1R0M51-2
click to zoom

IHLP6767GZER1R0M51 Details

  • Manufacturer Part Number:

    IHLP6767GZER1R0M51

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Case/Size Code:

    6767

  • Construction:

    Rectangular

  • Core Material:

    COMPOSITE

  • DC Resistance:

    0.00146 Ω

  • Inductance-Nom (L):

    1 µH

  • Inductor Application:

    RF INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    7 mm

  • Package Length:

    17.15 mm

  • Package Style:

    SMT

  • Package Width:

    17.15 mm

  • Packing Method:

    TR, 13 Inch

  • Rated Current-Max:

    53 A

  • Self Resonance Frequency:

    35.5 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

IHLP6767GZER1R0M51 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the IHLP6767GZER1R0M51 is a rectangular pad with a length of 6.5mm, a width of 5.5mm, and a thickness of 0.5mm. The pad should have a non-solder mask defined (NSMD) pad shape with a minimum of 0.5mm clearance around the pad.
  • The IHLP6767GZER1R0M51 has a maximum operating temperature of 125°C. To ensure reliable operation, the inductor should be mounted on a PCB with a thermal via or a thermal pad to dissipate heat. The surrounding components should also be chosen to ensure that they do not exceed their maximum operating temperatures.
  • The recommended soldering process for the IHLP6767GZER1R0M51 is a reflow soldering process with a peak temperature of 260°C for 10-30 seconds. The inductor should be soldered using a solder with a melting point of 217°C or higher.
  • The IHLP6767GZER1R0M51 meets the required safety standards for UL (UL 94V-0) and IEC (IEC 60068-2-21). To ensure compliance, the inductor should be used in accordance with the recommended PCB layout, soldering process, and operating conditions.
  • The equivalent series resistance (ESR) of the IHLP6767GZER1R0M51 is 0.015 ohms at 100 kHz. This value is important to consider when designing the inductor into a circuit, as it affects the overall impedance and power loss.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IHLP6767GZER1R0M51 Overview

Use the download button to access the IHLP6767GZER1R0M51 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IHLP6, or try a keyword search, such as Fixed Inductors
