The thermal resistance of the IHTH1125KZEB100M5A is not explicitly stated in the datasheet, but it can be estimated to be around 10-15°C/W, based on similar products from Vishay.
While the IHTH1125KZEB100M5A is primarily designed for DC-DC converter applications, it can be used in high-frequency applications up to 1 MHz, but the inductor's performance may degrade at higher frequencies.
To ensure the IHTH1125KZEB100M5A meets your application's requirements, perform thorough simulations and testing, considering factors such as operating frequency, current, and temperature, and consult with Vishay's application engineers if necessary.
For optimal performance, follow Vishay's recommended PCB layout guidelines, which include using a solid ground plane, minimizing trace lengths, and keeping the inductor away from noise sources and heat sources.
The IHTH1125KZEB100M5A is rated for operation up to 125°C, but its performance may degrade at higher temperatures. Consult Vishay's application engineers for guidance on using the inductor in high-temperature environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IHTH1125KZEB100M5A Overview

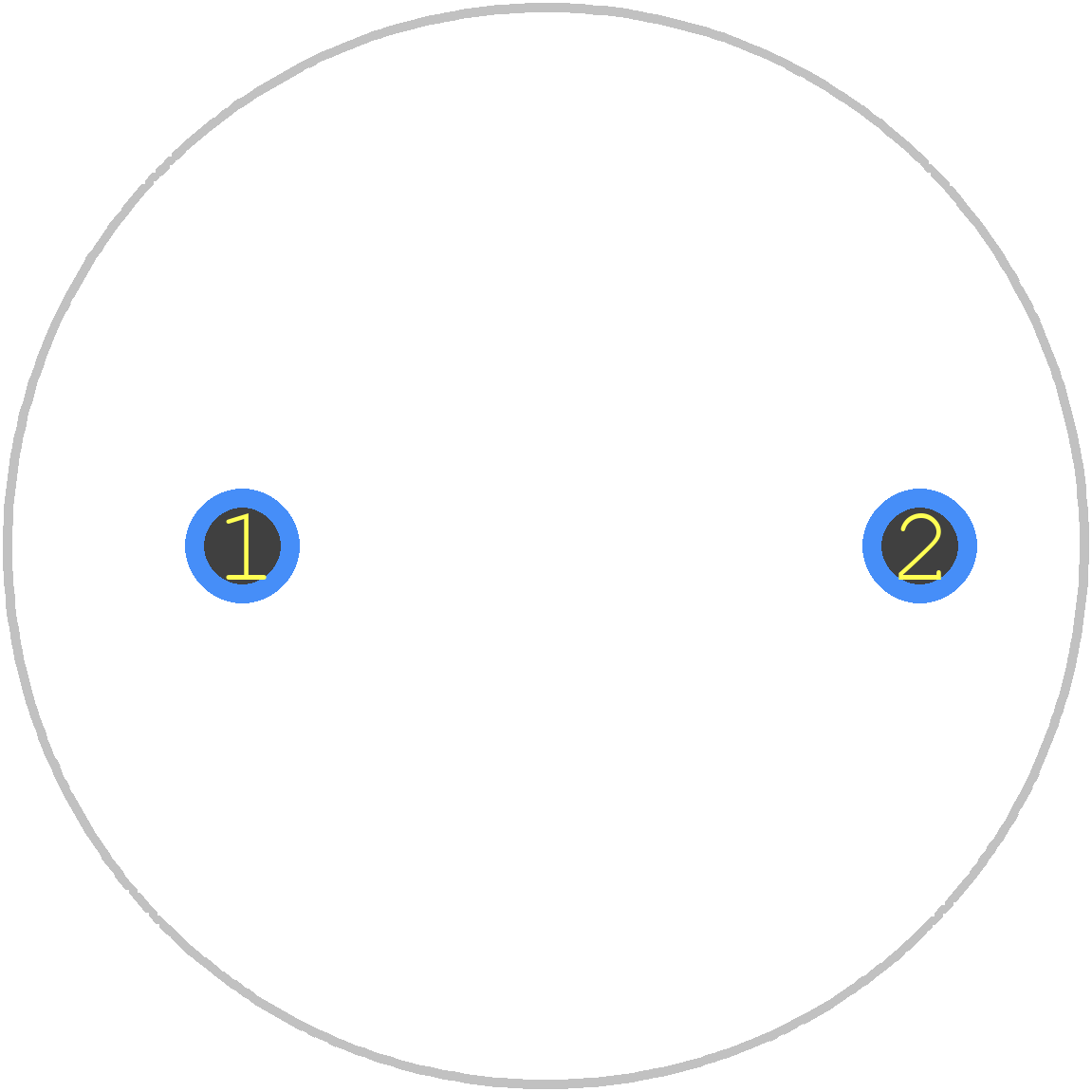

Use the download button to access the IHTH1125KZEB100M5A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IHTH1,
or try a keyword search, such as Fixed Inductors
