IHTH1125KZEB2R2M5A footprint, schematic symbol and 3D model by Vishay

Symbol

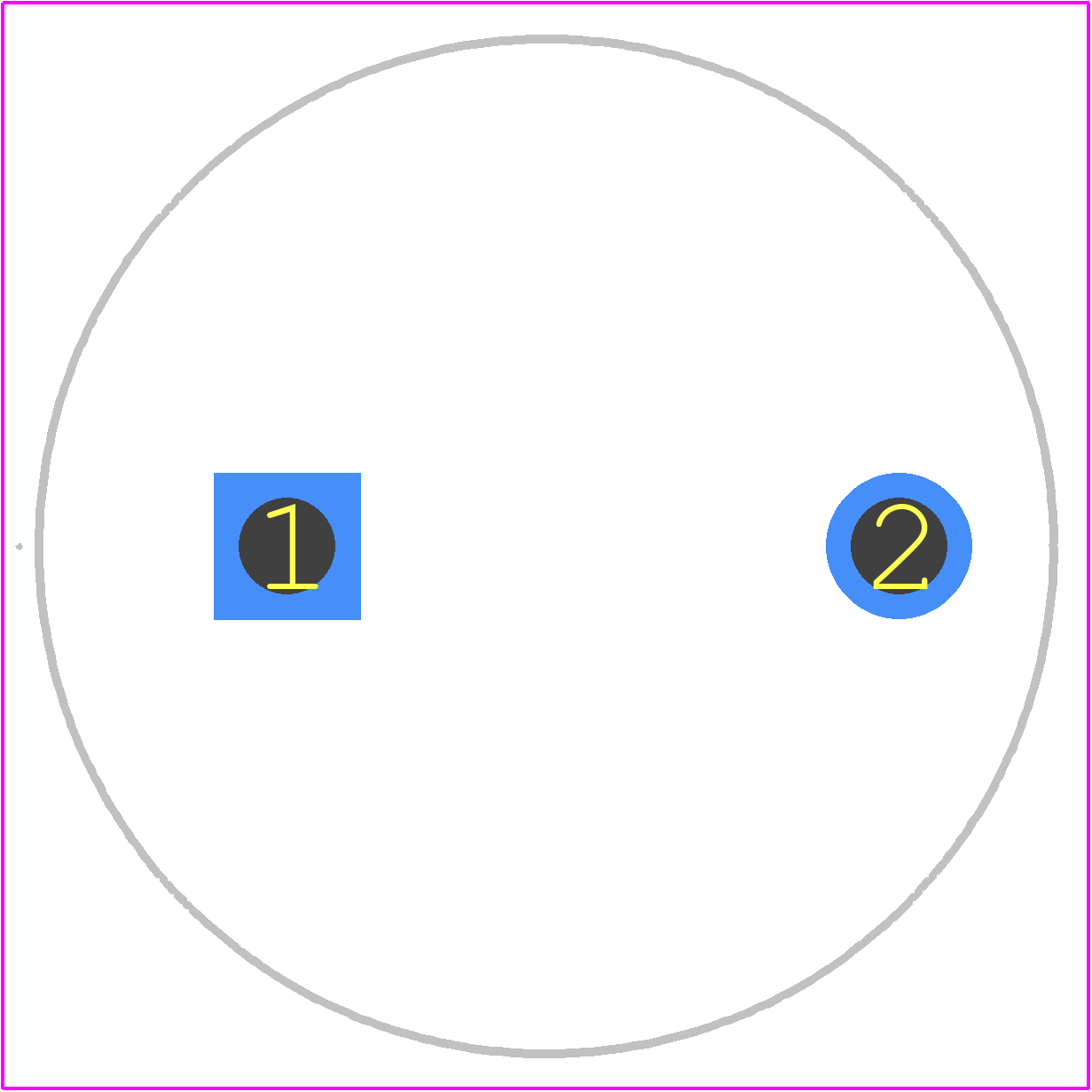

PCB Footprints

3D Models

IHTH1125KZEB2R2M5A Details

The recommended land pattern for the IHTH1125KZEB2R2M5A can be found in the Vishay Intertechnologies' application note AN42172, which provides guidelines for PCB layout and assembly.
The IHTH1125KZEB2R2M5A has a thermal resistance of 2.5°C/W. To ensure proper thermal management, it is recommended to use a heat sink with a thermal interface material and to follow the guidelines outlined in the Vishay Intertechnologies' application note AN42172.
The maximum operating temperature range for the IHTH1125KZEB2R2M5A is -55°C to 150°C, as specified in the datasheet.
Yes, the IHTH1125KZEB2R2M5A is designed for high-reliability applications and is qualified to the requirements of MIL-PRF-49470 and MIL-PRF-83446.
The equivalent series resistance (ESR) of the IHTH1125KZEB2R2M5A is 2.5 mohms, as specified in the datasheet.
