Vishay provides a recommended PCB layout and land pattern in their application note AN1022, which can be found on their website. It's essential to follow these guidelines to ensure optimal thermal performance and minimize thermal resistance.
Vishay recommends using a thin layer of thermal interface material (TIM) with a thermal conductivity of at least 5 W/m-K. The TIM should be applied evenly and thinly to the base plate of the IHTH1125KZEB330M5A. Over-tightening or under-tightening the screw can compromise the TIM's performance, so it's essential to follow the recommended torque specification.
Vishay recommends derating the voltage by 10% to 15% to ensure reliable operation and prevent premature failure. This means that if the maximum rated voltage is 330V, the maximum allowable voltage would be around 280V to 300V.
Proper cooling is crucial for the IHTH1125KZEB330M5A. Ensure good airflow around the device, and consider using a heat sink or fan to improve convection. The device's thermal resistance (Rth) should be calculated and considered in the thermal design to prevent overheating.
Vishay provides reliability data in their datasheet, including the mean time to failure (MTTF) and failure rate (λ). The IHTH1125KZEB330M5A is designed to meet the requirements of AEC-Q101, which ensures a high level of reliability and robustness. However, the actual lifespan will depend on various factors, including operating conditions, temperature, and quality of assembly.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IHTH1125KZEB330M5A Overview

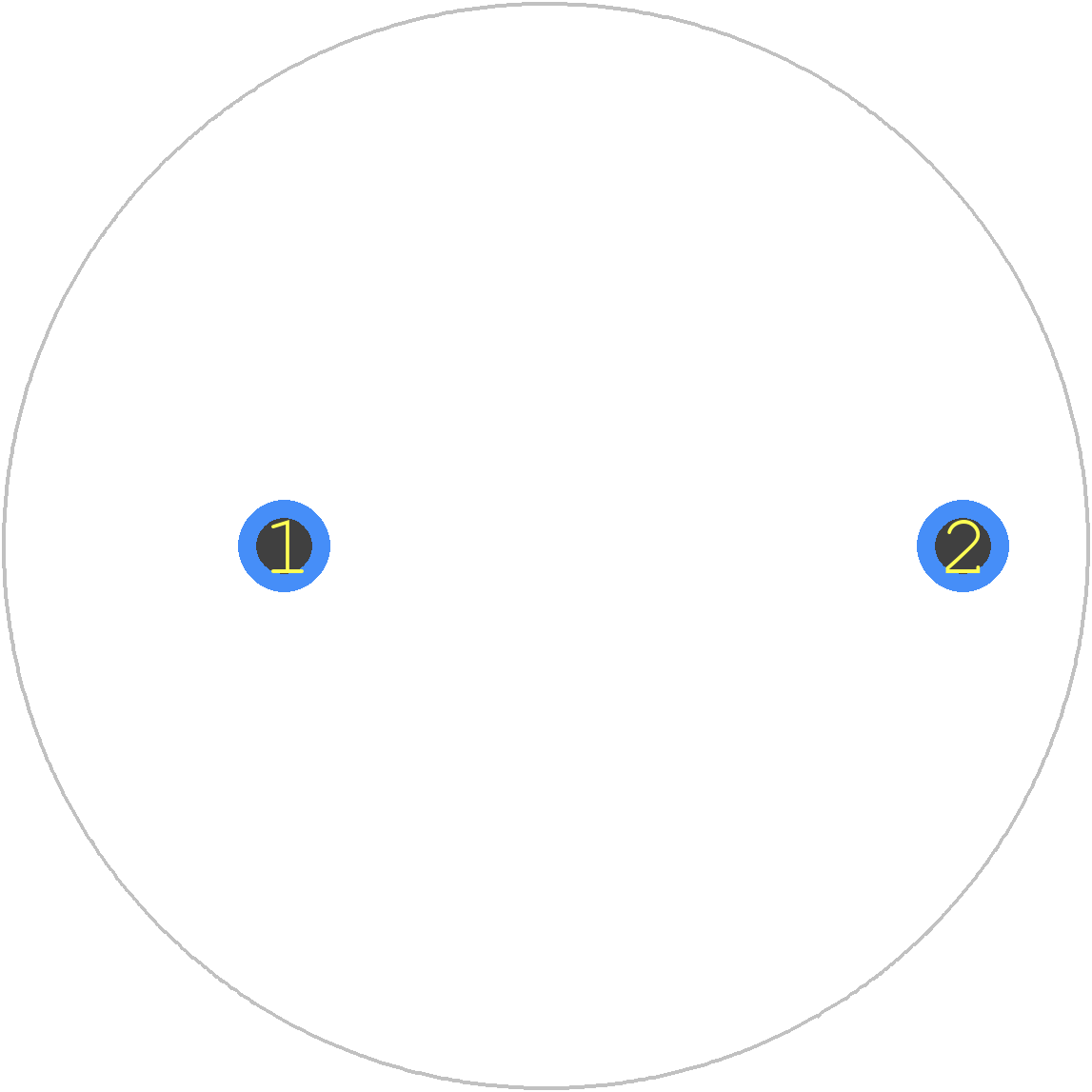

Use the download button to access the IHTH1125KZEB330M5A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IHTH1,
or try a keyword search, such as Fixed Inductors
