IHTH1125MZEB330M5A - Vishay

Description: 33 µH Shielded Inductor 16.8 A 11mOhm Max Radial, Vertical Cylinder

Download IHTH1125MZEB330M5A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IHTH1125MZEB330M5A - Vishay - PCB symbol
click to zoom

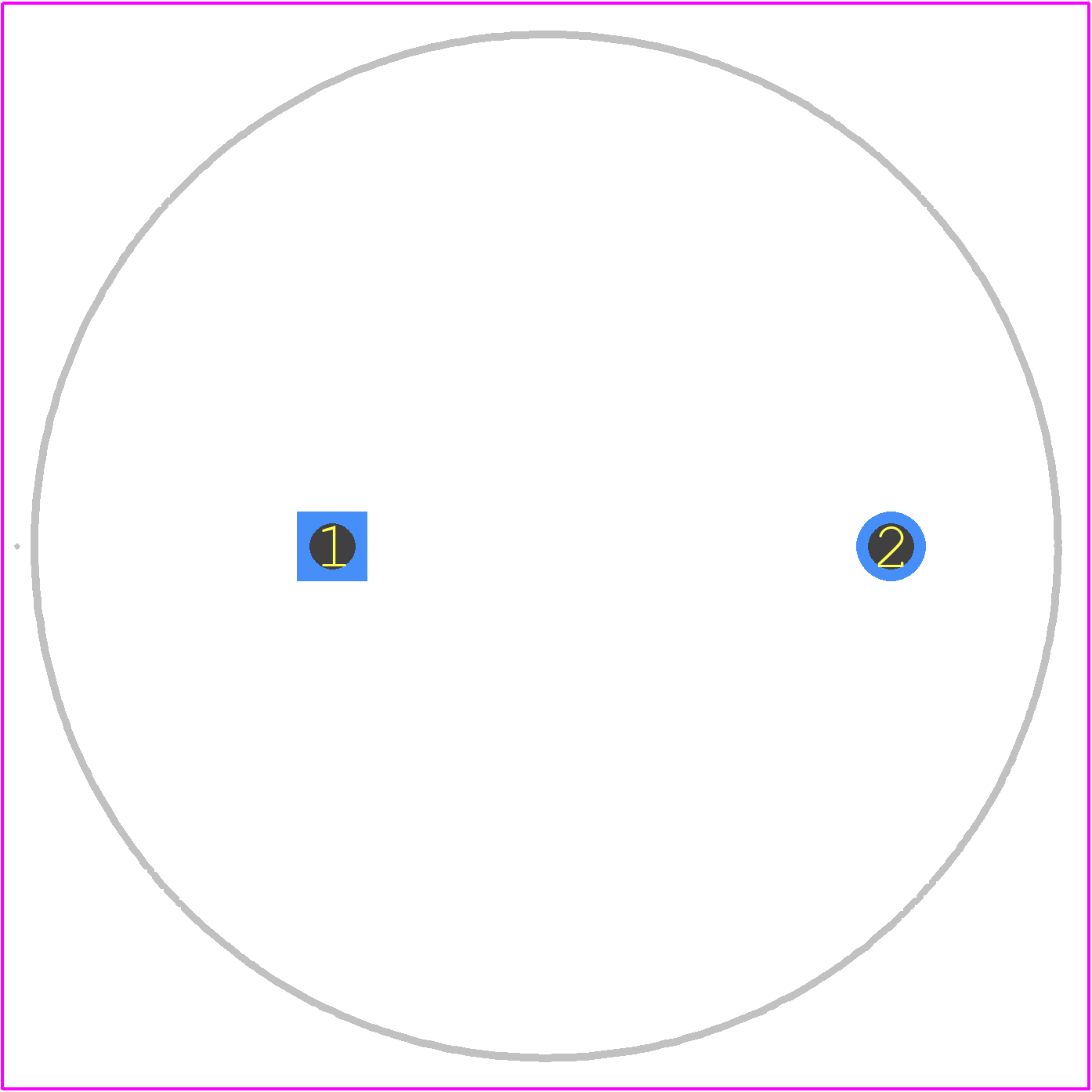

PCB Footprints
IHTH1125MZEB330M5A - Vishay PCB footprint - Other - Other - IHTH1125MZEB330M5A-4
click to zoom
3D Models
IHTH1125MZEB330M5A - Vishay - 3D model - Other - IHTH1125MZEB330M5A-4
click to zoom

IHTH1125MZEB330M5A Details

  • Manufacturer Part Number:

    IHTH1125MZEB330M5A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Construction:

    Shielded

  • Core Material:

    COMPOSITE

  • DC Resistance:

    0.011 Ω

  • Inductance-Nom (L):

    33 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    1.422 mm

  • Lead Length:

    4.191 mm

  • Lead Spacing:

    19.355 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    29.947 mm

  • Package Length:

    12.7 mm

  • Package Style:

    Radial

  • Packing Method:

    Bulk

  • Rated Current-Max:

    16.8 A

  • Reference Standard:

    AEC-Q200

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

IHTH1125MZEB330M5A Frequently Asked Questions (FAQs)

  • The thermal resistance of the IHTH1125MZEB330M5A is 35°C/W (junction-to-ambient) and 2.5°C/W (junction-to-case).
  • Yes, the IHTH1125MZEB330M5A is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of hazardous substances in electrical and electronic equipment.
  • The recommended land pattern for the IHTH1125MZEB330M5A can be found in the Vishay Intertechnologies application note AN10343, which provides guidelines for PCB layout and assembly.
  • Yes, the IHTH1125MZEB330M5A is suitable for high-reliability applications, such as aerospace, defense, and industrial control systems, due to its high-quality construction and rigorous testing.
  • The IHTH1125MZEB330M5A has a moisture sensitivity level (MSL) of 3, which means it can withstand exposure to moisture for up to 168 hours without damage.
