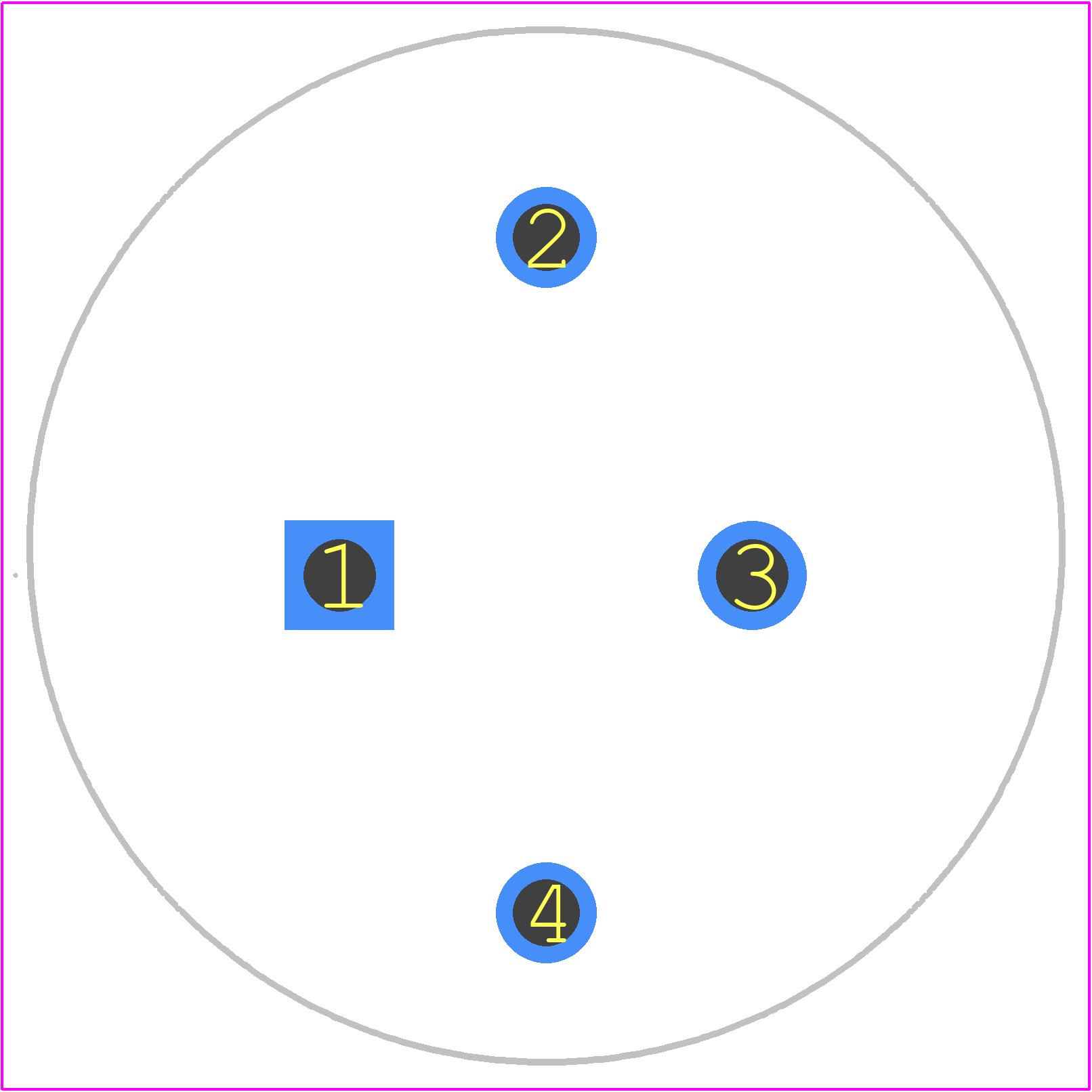

IHTH1500TZEB330M5A footprint, schematic symbol and 3D model by Vishay

Symbol

PCB Footprints

3D Models

IHTH1500TZEB330M5A Details

The recommended PCB footprint for IHTH1500TZEB330M5A is a rectangular pad with dimensions of 12.7 mm x 3.3 mm, with a thermal pad in the center. The thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C. Apply a small amount of solder paste to the PCB pads, and use a reflow oven with a peak temperature of 245°C to 265°C. Avoid using excessive solder or flux, as it can cause the component to lift off the PCB during reflow.
The maximum allowed voltage derating for IHTH1500TZEB330M5A is 80% of the maximum rated voltage. For example, if the maximum rated voltage is 1500 V, the derated voltage would be 1200 V.
To handle ESD protection for the IHTH1500TZEB330M5A, use an ESD wrist strap or mat when handling the component. Ensure that the PCB design includes ESD protection components, such as TVS diodes or ESD arrays, to protect the component from electrostatic discharge.
The recommended storage condition for IHTH1500TZEB330M5A is in a dry, cool place with a temperature range of -40°C to 30°C and relative humidity of 40% to 60%. Avoid storing the component in direct sunlight or near sources of moisture.

Community Provided

System Verified

Community Approved

Use the download button to access the IHTH1500TZEB330M5A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IHTH1, or try a keyword search, such as Fixed Inductors
