IHV50BZ50 - Vishay

Description: Fixed Inductors 50uH 10% Filter Inductors, High Current, Radial Leaded

Download IHV50BZ50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IHV50BZ50 - Vishay - PCB symbol
click to zoom
PCB Footprints

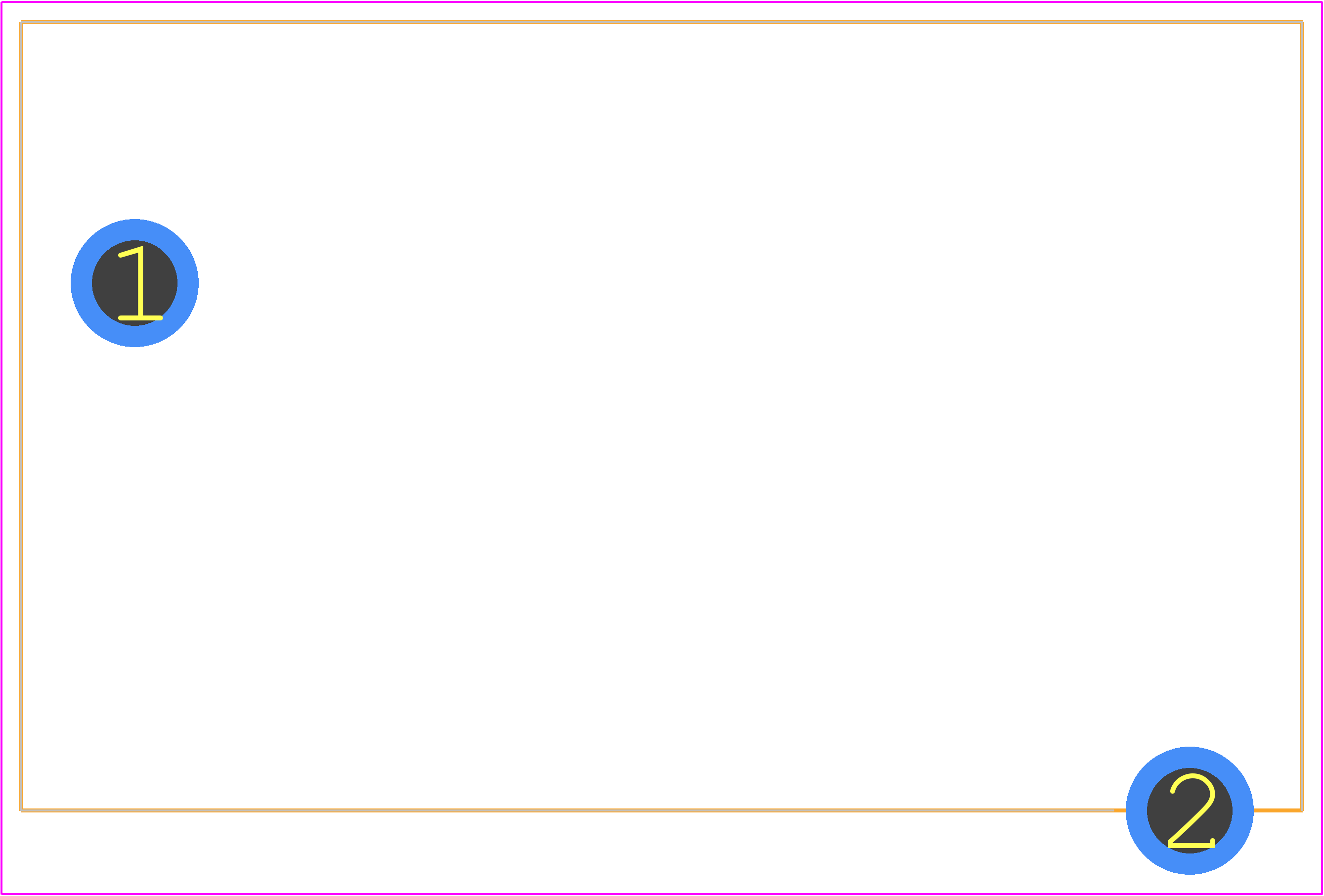

IHV50BZ50 - Vishay PCB footprint - Other - Other - IHV50BZ50-4
click to zoom
3D Models
IHV50BZ50 - Vishay - 3D model - Other - IHV50BZ50-4
click to zoom

IHV50BZ50 Details

  • Manufacturer Part Number:

    IHV50BZ50

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    Dominican Republic

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Construction:

    Flame Retardant

  • Core Material:

    IRON

  • DC Resistance:

    0.0045 Ω

  • Inductance-Nom (L):

    50 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    4.11 mm

  • Lead Length:

    15.85 mm

  • Lead Spacing:

    53.34 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    39.88 mm

  • Package Length:

    64.77 mm

  • Package Style:

    Radial

  • Packing Method:

    Bulk

  • Rated Current-Max:

    50 A

  • Self Resonance Frequency:

    3.1 MHz

  • Shape/Size Description:

    TUBULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Shape:

    WIRE

  • Tolerance:

    10%

IHV50BZ50 Frequently Asked Questions (FAQs)

  • The recommended storage condition for IHV50BZ50 is in a dry, cool place, away from direct sunlight, and in its original packaging or anti-static bag to prevent electrostatic discharge damage.
  • Handle the IHV50BZ50 by the body, not the leads, and use an anti-static wrist strap or mat to prevent ESD damage. Avoid touching the leads or any exposed metal parts.
  • The maximum allowable voltage derating for IHV50BZ50 is 80% of the rated voltage to ensure reliable operation and prevent premature failure.
  • While IHV50BZ50 can operate up to 150°C, it's recommended to derate the voltage and current ratings according to the temperature derating curve in the datasheet to ensure reliable operation.
  • Use a soldering iron with a temperature below 260°C, and avoid applying excessive force or bending the leads during soldering. Use a solder with a melting point below 220°C to prevent thermal damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IHV50BZ50 Overview

Use the download button to access the IHV50BZ50 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IHV50, or try a keyword search, such as Fixed Inductors
