IIM-42351 - TDK

Description: Tilt Sensing 3-Axis Accelerometer. Low power, Small form factor

Download IIM-42351 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

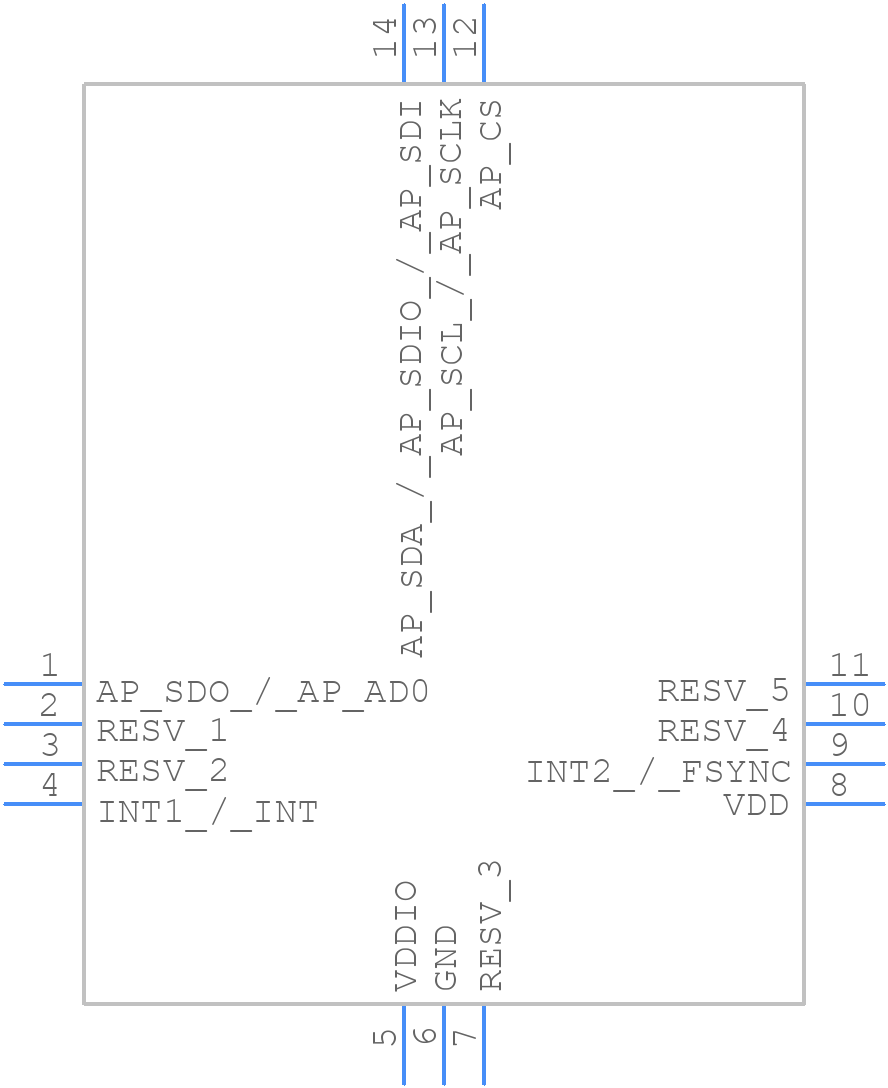

IIM-42351 - TDK - PCB symbol
click to zoom
PCB Footprints
IIM-42351 - TDK PCB footprint - Other - Other - 14 Lead LGA (2.5x3x0.91)_1
click to zoom
3D Models
IIM-42351 - TDK - 3D model - Other - 14 Lead LGA (2.5x3x0.91)_1
click to zoom

IIM-42351 Details

  • Manufacturer Part Number:

    IIM-42351

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    5

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.91 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.18-1.62V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Equivalence Code:

    LCC14,.1X.12,20

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

IIM-42351 Frequently Asked Questions (FAQs)

  • TDK recommends a 4-layer PCB with a solid ground plane and a separate power plane for the IIM-42351. The device should be placed near the center of the board, and the input and output capacitors should be placed as close as possible to the device.
  • Decoupling capacitors (e.g., 10uF and 100nF) should be placed as close as possible to the IIM-42351's power pins. Additionally, a 1uF capacitor should be placed between the VIN and GND pins to filter out high-frequency noise.
  • The maximum ambient temperature for reliable operation of IIM-42351 is 85°C. However, it's recommended to keep the ambient temperature below 70°C for optimal performance and reliability.
  • Yes, the IIM-42351 is designed to withstand vibrations up to 10G. However, it's recommended to follow proper mounting and soldering techniques to ensure the device is securely attached to the PCB.
  • Start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly decoupled and that the PCB layout is correct. If issues persist, consult the datasheet and application notes or contact TDK's technical support.
