TDK recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
To ensure reliability in high-temperature applications, it's essential to follow TDK's recommended derating guidelines for the device. Additionally, ensure good thermal management by providing adequate heat sinking and airflow around the device. It's also crucial to follow proper soldering and assembly techniques to prevent thermal stress.
While the datasheet specifies the maximum operating voltage, it's essential to note that the device can withstand voltage stress up to 1.5 times the maximum operating voltage for a short duration (typically 100 ms). However, it's recommended to consult with TDK's application engineers for specific guidance on voltage stress and surge protection.
To troubleshoot common issues, start by verifying the PCB layout and assembly quality. Check for any signs of overheating, such as burn marks or discoloration. Use a thermal imaging camera to identify hotspots. Also, verify the input and output voltage levels, and check for any signs of electrical overstress. Consult TDK's application notes and technical support resources for further guidance.
Yes, IIM-42352 is a high-frequency device, and EMI/EMC considerations are crucial. Ensure proper shielding and grounding of the device, and follow TDK's recommended layout guidelines. Use a common-mode choke or ferrite bead to filter out high-frequency noise, and consider using a metal shield or enclosure to contain EMI radiation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IIM-42352 Overview

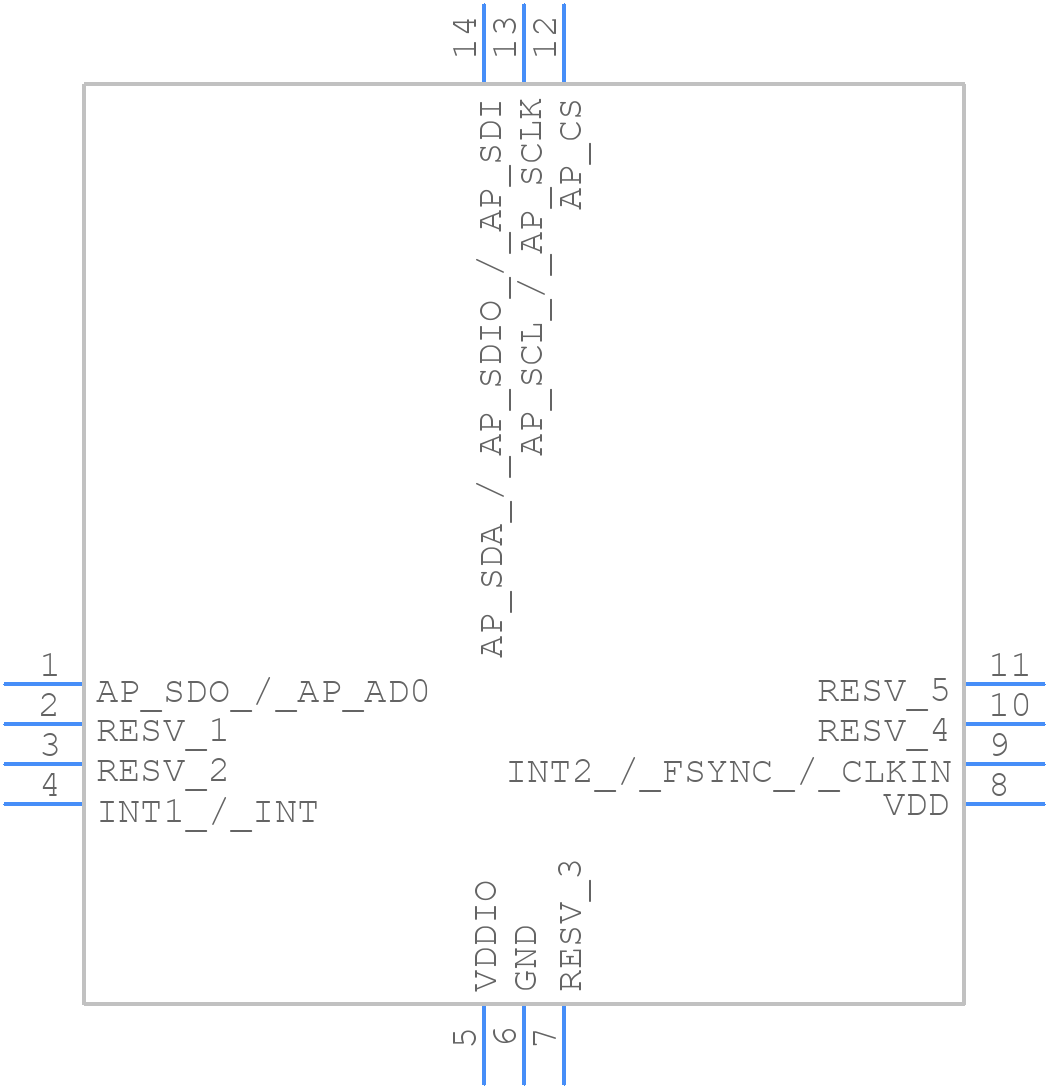

Use the download button to access the IIM-42352 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IIM-4,
or try a keyword search, such as Other Sensors/Transducers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
