IIS2MDCTR - STMicroelectronics

Description: STMICROELECTRONICS - IIS2MDCTR - MEMS MODULE, 3-AXIS MAGNETOMETER, LGA-12

Download IIS2MDCTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

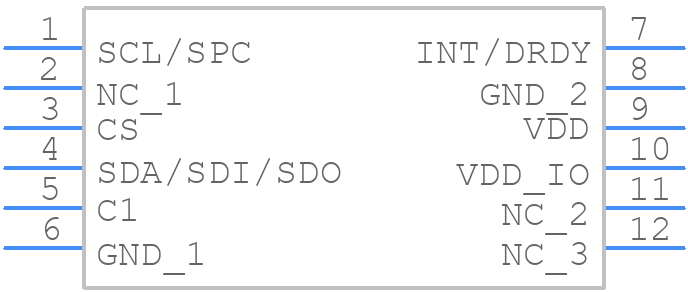

IIS2MDCTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
IIS2MDCTR - STMicroelectronics PCB footprint - Other - Other - LGA-12 XDM
click to zoom
3D Models
IIS2MDCTR - STMicroelectronics - 3D model - Other - LGA-12 XDM
click to zoom

IIS2MDCTR Details

  • Manufacturer Part Number:

    IIS2MDCTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-12

  • Country Of Origin:

    Malta

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2017-09-22

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    4

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PBGA-B12

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFLGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.7 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    2 mm

IIS2MDCTR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDDIO pin first, followed by the VDD pin. This ensures that the internal voltage regulators are properly initialized.
  • The IIS2MDCTR has a programmable full-scale range. You can configure it by writing to the FS_X, FS_Y, and FS_Z registers (addresses 0x10 to 0x12) to set the desired full-scale range for each axis.
  • The INT_DRDY pin is an interrupt pin that signals when new data is available. You can use it to trigger an interrupt in your microcontroller to read the new data from the IIS2MDCTR.
  • Calibration involves offset and sensitivity adjustments. You can perform calibration by reading the sensor data at different temperatures and orientations, and then applying the necessary corrections to the sensor data.
  • The maximum sampling rate of the IIS2MDCTR is 3.2 kHz. However, the actual sampling rate may be limited by the communication interface and the microcontroller's processing speed.
