IIS328DQTR - STMicroelectronics

Description: IIS328DQTR STMicroelectronics, 3-Axis Accelerometer, Serial-3 Wire, Serial-4 Wire, Serial-I2C, Serial-SPI, 24-Pin QFPN

Download IIS328DQTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

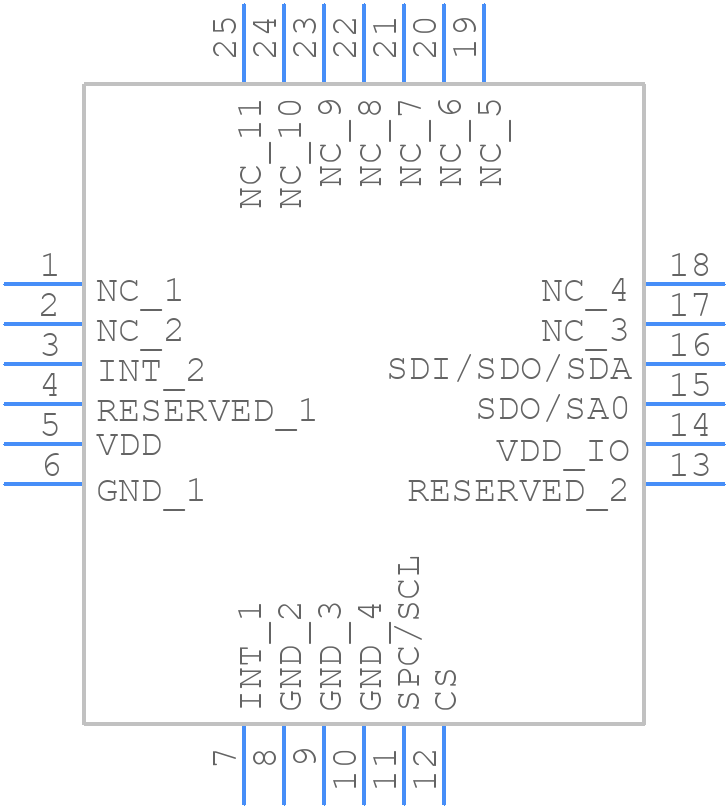

IIS328DQTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
IIS328DQTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - IIS328DQTR
click to zoom
3D Models
IIS328DQTR - STMicroelectronics - 3D model - Quad Flat No-Lead - IIS328DQTR
click to zoom

IIS328DQTR Details

  • Manufacturer Part Number:

    IIS328DQTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3.15

  • JESD-609 Code:

    e3

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Terminal Finish:

    Matte Tin (Sn)

IIS328DQTR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDDIO pin first, followed by the VDD pin. This ensures that the internal voltage regulators are properly initialized.
  • To configure the IIS328DQTR for low-power mode, set the LPEN pin to a logic low level. This will reduce the current consumption of the device. Additionally, you can also adjust the ODR (Output Data Rate) and the bandwidth of the sensor to further reduce power consumption.
  • The maximum acceleration range of the IIS328DQTR is ±16g. However, it's recommended to operate the device within the ±8g range for optimal performance and accuracy.
  • The IIS328DQTR does not require calibration. It is a self-contained accelerometer that provides accurate measurements out of the box. However, you may need to perform a zero-g offset calibration depending on your specific application requirements.
  • The recommended PCB layout for the IIS328DQTR involves keeping the device away from high-current carrying traces and noise sources. It's also recommended to use a solid ground plane and to decouple the power supply lines with capacitors.
