IL261-1E - NVE

Description: DGTL ISO 2.5KV GEN PURP 16QSOP

Download IL261-1E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

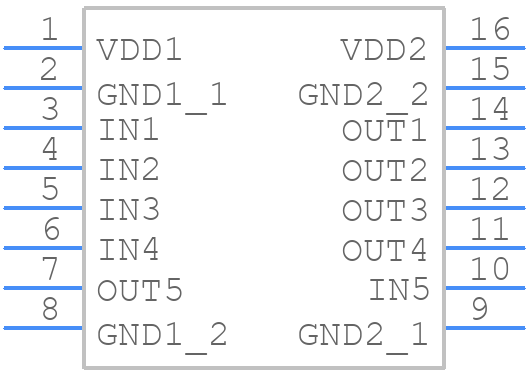

Symbol
IL261-1E - NVE - PCB symbol
click to zoom
PCB Footprints
IL261-1E - NVE PCB footprint - Small Outline Packages - Small Outline Packages - 16-pin QSOP_2021
click to zoom
3D Models
IL261-1E - NVE - 3D model - Small Outline Packages - 16-pin QSOP_2021
click to zoom

IL261-1E Details

  • Manufacturer Part Number:

    IL261-1E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-16

  • Country Of Origin:

    USA

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NVE Corporation

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.885 mm

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

IL261-1E Frequently Asked Questions (FAQs)

  • A symmetrical layout with a ground plane and minimal signal trace length is recommended. Keep the IL261-1E away from high-current carrying traces and noisy components.
  • Use a thermally conductive PCB material, ensure good airflow, and consider using a heat sink or thermal interface material. The IL261-1E is rated for operation up to 125°C, but derating may be necessary for extended lifetimes.
  • Power on the VCC supply before applying the input signal. This ensures proper internal biasing and minimizes the risk of latch-up or damage.
  • Yes, the IL261-1E can be used in differential signaling applications. However, it's essential to ensure that the common-mode voltage is within the specified range and that the differential signal is properly terminated.
  • Use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines. Ensure that the ESD protection devices are rated for the expected ESD voltage and current levels.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IL261-1E Overview

Use the download button to access the IL261-1E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IL261, or try a keyword search, such as Other Interface ICs
