IL41050TA-1E - NVE

Description: DGTL ISO 2.5KV 2CH CAN 16QSOP

Download IL41050TA-1E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

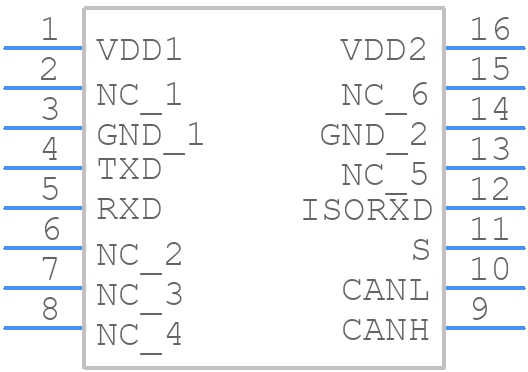

IL41050TA-1E - NVE - PCB symbol
click to zoom
PCB Footprints
IL41050TA-1E - NVE PCB footprint - Small Outline Packages - Small Outline Packages - IL41050TA-1E
click to zoom
3D Models
IL41050TA-1E - NVE - 3D model - Small Outline Packages - IL41050TA-1E
click to zoom

IL41050TA-1E Details

  • Manufacturer Part Number:

    IL41050TA-1E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-16

  • Country Of Origin:

    USA

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NVE Corporation

  • YTEOL:

    7.67

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.885 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

IL41050TA-1E Frequently Asked Questions (FAQs)

  • NVE recommends a symmetrical PCB layout with the GMR sensor centered between the two magnetically shielded copper planes. This layout helps to minimize external magnetic interference and ensures optimal performance.
  • The IL41050TA-1E has built-in noise filtering and EMI shielding, which helps to reduce the effects of high-frequency noise and electromagnetic interference. Additionally, NVE recommends using proper PCB layout and shielding techniques to further minimize the impact of EMI.
  • The IL41050TA-1E is rated for operation from -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • Yes, the IL41050TA-1E is designed to meet the requirements of safety-critical applications, such as automotive and industrial control systems. It has been tested to meet relevant safety standards, including ISO 26262 and IEC 61508.
  • The IL41050TA-1E offers high sensitivity, low power consumption, and high accuracy, making it a competitive option in the GMR sensor market. Its small size and low profile also make it suitable for use in compact designs.
