IL715-1E - NVE

Description: DGTL ISO 2.5KV GEN PURP 16QSOP

Download IL715-1E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

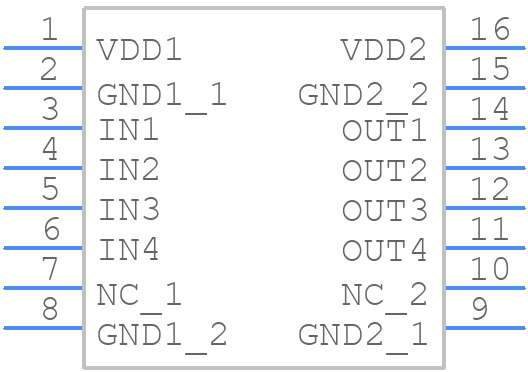

IL715-1E - NVE - PCB symbol
click to zoom
PCB Footprints
IL715-1E - NVE PCB footprint - Small Outline Packages - Small Outline Packages - 16-pin QSOP
click to zoom
3D Models
IL715-1E - NVE - 3D model - Small Outline Packages - 16-pin QSOP
click to zoom

IL715-1E Details

  • Manufacturer Part Number:

    IL715-1E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-16

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NVE Corporation

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.885 mm

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

IL715-1E Frequently Asked Questions (FAQs)

  • NVE recommends a symmetrical PCB layout with the IL715-1E at the center, and keeping the input and output traces as short as possible. Additionally, a ground plane under the device can help reduce noise and improve performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow. Additionally, NVE recommends derating the device's output current and voltage according to the temperature derating curve provided in the datasheet.
  • While the datasheet specifies a minimum input voltage of 3.3V, NVE recommends operating the IL715-1E with an input voltage between 4.5V and 5.5V for optimal performance and reliability.
  • To troubleshoot issues with the IL715-1E, NVE recommends checking the input voltage, output load, and PCB layout for any anomalies. Additionally, using an oscilloscope to monitor the output voltage and current can help identify the root cause of the issue. NVE also provides application notes and technical support to help with troubleshooting.
  • Yes, the IL715-1E is compatible with lead-free soldering processes. NVE ensures that all its products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
