Description:DIGITAL ISOLATOR, 12NS, NSOIC-16; No. of Channels:4 Channel; Propagation Delay:12ns; Supply Voltage Min:3V; Supply Voltage Max:5.5V; Interface Case Style:SOIC; No. of Pins:16Pins; Operating Temperature Min:-40°C; Product Range:- RoHS Compliant: Yes
A good PCB layout for the IL715T-3E involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the signal traces to reduce capacitance and inductance.
To ensure reliable operation in high-temperature environments, ensure that the IL715T-3E is operated within its specified temperature range (-40°C to 125°C), and consider using thermal management techniques such as heat sinks or thermal interfaces to reduce the junction temperature.
The IL715T-3E can support data rates up to 150 Mbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal integrity.
To troubleshoot issues with the IL715T-3E, use an oscilloscope to analyze the input and output signals, check the power supply voltage and current, and verify that the device is properly connected and configured according to the datasheet.
Yes, the IL715T-3E is designed to meet the requirements of safety-critical applications, with features such as high isolation voltage, low capacitance, and high common-mode rejection ratio. However, it is essential to follow the guidelines and regulations specific to the application and industry.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IL715T-3E Overview

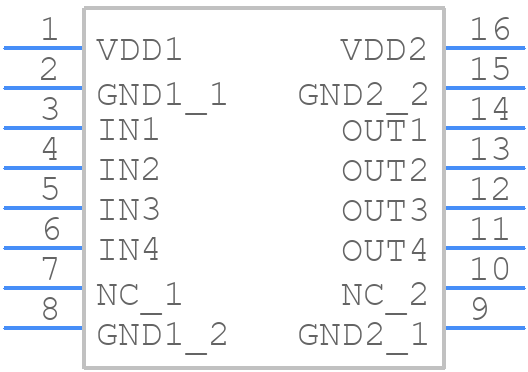

Use the download button to access the IL715T-3E schematic symbol and PCB footprint.
