ILD1151 - Infineon

Description: ILD1151 - LED Driver & Active Bias Controller

Download ILD1151 Model
Schematic
symbols

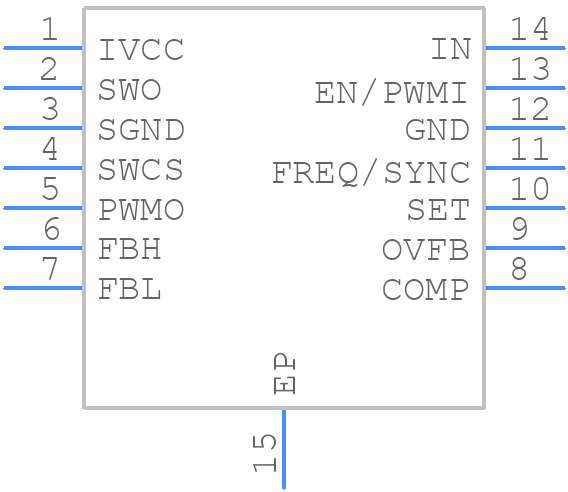

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ILD1151 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-SSOP-14
click to zoom
3D Models
ILD1151 - Infineon  - 3D model - Small Outline Packages - PG-SSOP-14
click to zoom

ILD1151 Details

  • Manufacturer Part Number:

    ILD1151

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    GREEN, PLASTIC, SSOP-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    4.9 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    8

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage-Max:

    45 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

ILD1151 Frequently Asked Questions (FAQs)

  • Infineon recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using a heat sink or thermal interface material to reduce the thermal resistance between the device and the ambient environment.
  • Although the datasheet specifies the recommended operating voltage range, it's essential to note that the absolute maximum rating for the input pins is 7V. Exceeding this voltage can cause permanent damage to the device.
  • To prevent electrostatic discharge (ESD) damage, handle the devices with ESD-protective equipment, such as wrist straps or mats. During assembly, ensure that the PCB and components are properly grounded, and consider using ESD-protective packaging materials.
  • Infineon recommends soldering the ILD1151 using a reflow soldering process with a peak temperature of 260°C (500°F) and a dwell time of 20-30 seconds. Hand soldering is not recommended due to the risk of overheating the device.
